En Route Care Scenario 2 - NoSpontaneous

Moderate COPD with Subsequent Bronchospasm

Description

A 62 year-old patient developed pneumonia while working on a water purification system. He has 90- pack year history of cigarette smoking (2 packs per day x 45 years), has type II diabetes and primary hypertension managed with oral medications. He uses a rescue inhaler (albuterol) and is on a maintenance inhaled corticosteroid. His pre-deployment FEV-1 is 43% of predicted. The patient is 5'9" tall, weighs 210 lbs and has no known allergies.

Chest radiograph demonstrates left-lower lobe consolidation, haziness in the right lower lobe, flattened diaphragms and hyperinflation in the upper lung fields. Heart rate is normal sinus rhythm and occasional PVC's. Patient is sedated and not triggering ventilator.

Figure 1. Chest radiograph demonstrates left-lower lobe consolidation, haziness in the right lower lobe, flattened diaphragms and hyperinflation in the upper lung fields.

Segment Validation

Segment 1

Learning Objectives:

  • Assess baseline status
  • Recognize presence of autoPEEP (from flow waveform)
  • Suspect obstructive lung disease (high minute ventilation requirement but high SpO2 and low Pplat)

Recommended Actions:

  • None


Ventilator settings are:

Mode VT (L) PIP (cmH2O) Flow (L/min) I:E TI (s) RR (bpm) PEEP (cmH2O) FiO2
VC-AC 0.650 NA 70 NA 0.6 14 5 0.4

Ventilator alarm settings are:

  • High PIP = 50 cmH2O (~10 cmH2O above the initial value or a max of 50 cmH2O)
  • Low MVe = 6.8 L/min (~25% below the initial value)
  • Low VT = 490 mL (~25% below the initial value)
  • High RR = 24 bpm (~10 bpm above the initial value or a max of 40 bpm)
Table 1. Data request validation results for Segment 1.
Property Name Validation Engine Value Percent Error Percent Change Notes
MechanicalVentilator-TidalVolume(mL) EqualTo 650 650 0.0590%   VT (measured)
InspiratoryRespiratoryResistance(cmH2O_s/L) EqualTo 24 [381] [270] 24.0 0.196%   Rinsp for moderate COPD
ExpiratoryRespiratoryResistance(cmH2O_s/L) EqualTo 36 [381] 36.9 2.45%   Rexp for moderate COPD
RespiratoryCompliance(mL/cmH2O) EqualTo 68 [229] 64.5 5.22%   C for moderate COPD
PhysiologicDeadSpaceTidalVolumeRatio EqualTo 0.49 [113] 0.477 2.59%   VD/VT for moderate COPD
ClinicalShuntFraction EqualTo 0.19 [364] 0.187 1.79%   QS/QT for moderate COPD (determined from blood gas values)

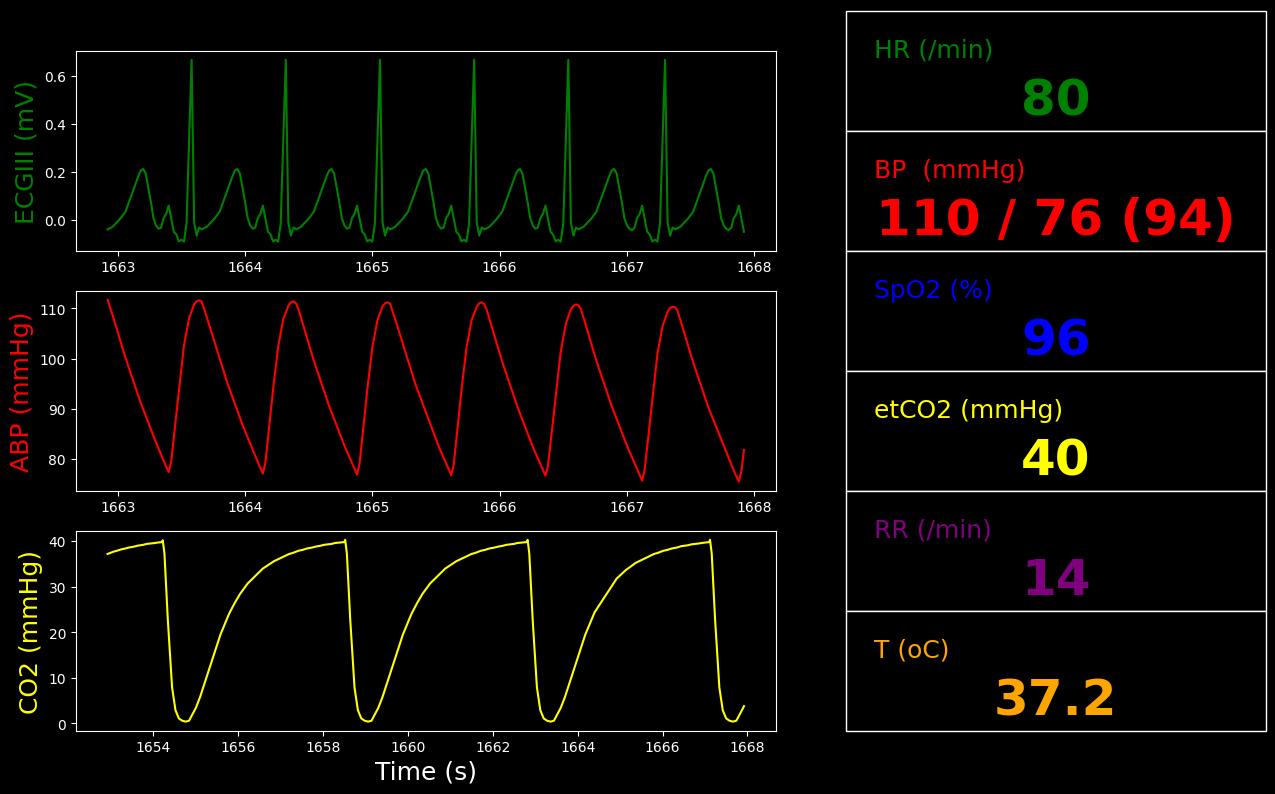

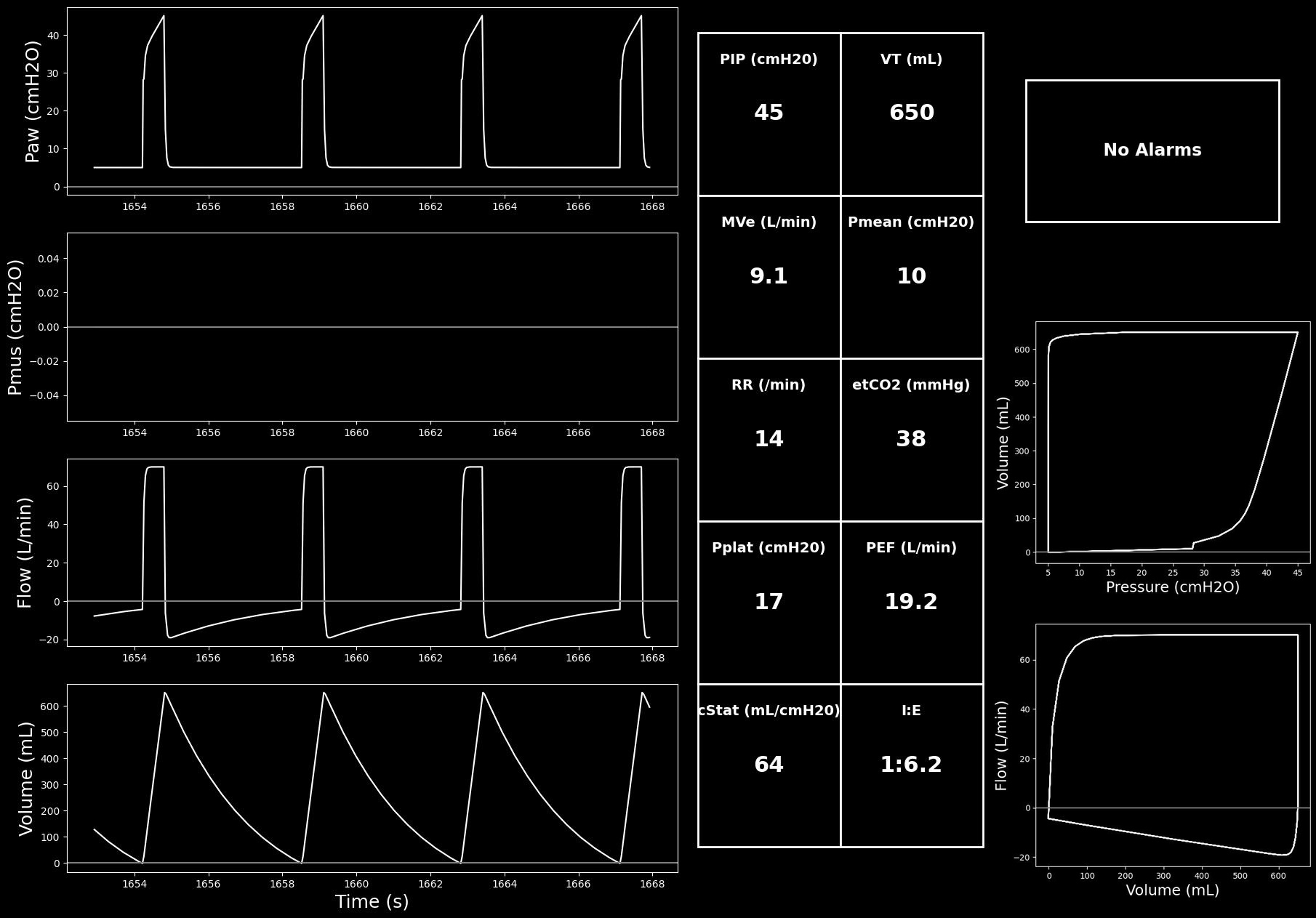

Figure 2. Vitals and ventilator monitors for Segment 1.


Table 2. Data requests for Segment 1.
Property Name Engine Value
Patient-Height(in) 69.0
Patient-IdealBodyWeight(kg) 70.7
InspiratoryRespiratoryResistance(cmH2O_s/L) 24.0
ExpiratoryRespiratoryResistance(cmH2O_s/L) 36.9
RespiratoryCompliance(mL/cmH2O) 64.5
ClinicalPhysiologicDeadSpaceTidalVolumeRatio 0.410

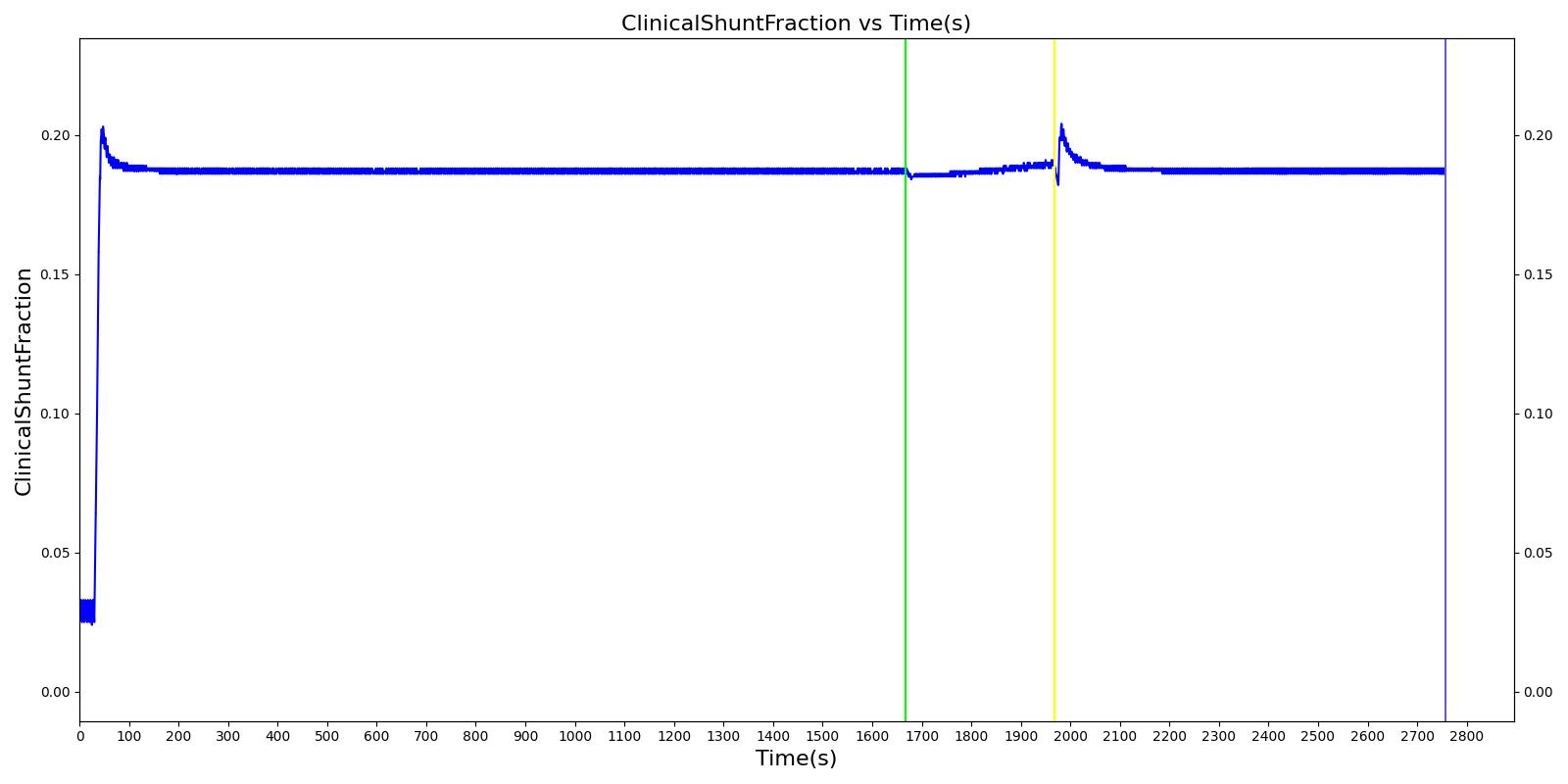

ClinicalShuntFraction 0.187
MechanicalVentilator-TidalVolume(L) 0.650
BloodPH 7.37

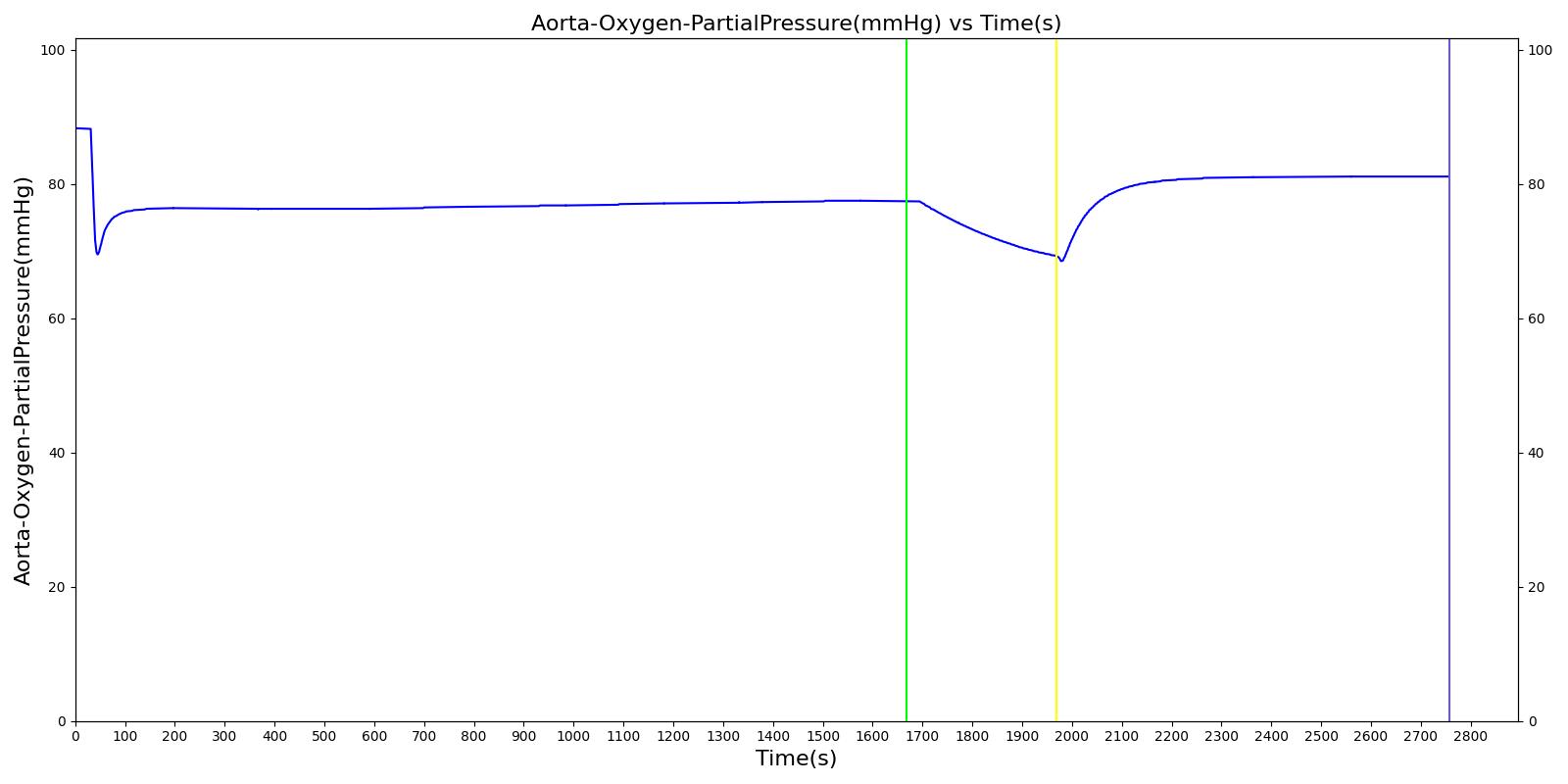

Aorta-Oxygen-PartialPressure(mmHg) 77.6

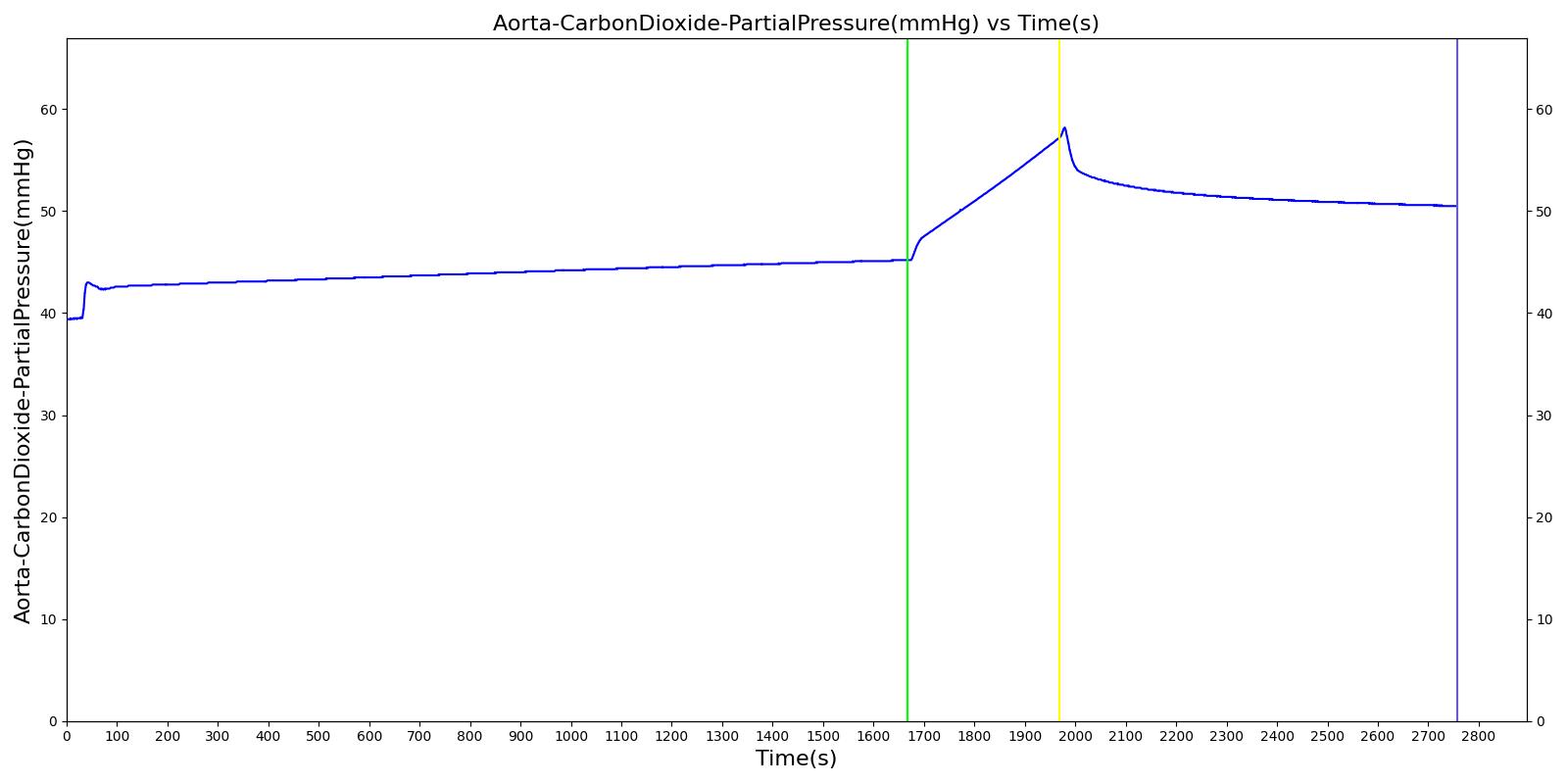

Aorta-CarbonDioxide-PartialPressure(mmHg) 45.2
Aorta-Bicarbonate-Molarity(mEq/L) 26.1
OxygenSaturation 0.956
HorowitzIndex(mmHg) 194
IntrinsicPositiveEndExpiratoryPressure(cmH2O) 2.73
MechanicalVentilator-RespirationRate(1/min) 14.0
MechanicalVentilator-MeanAirwayPressure(cmH2O) 9.82
MechanicalVentilator-PeakInspiratoryPressure(cmH2O) 45.0
MechanicalVentilator-PlateauPressure(cmH2O) 17.3

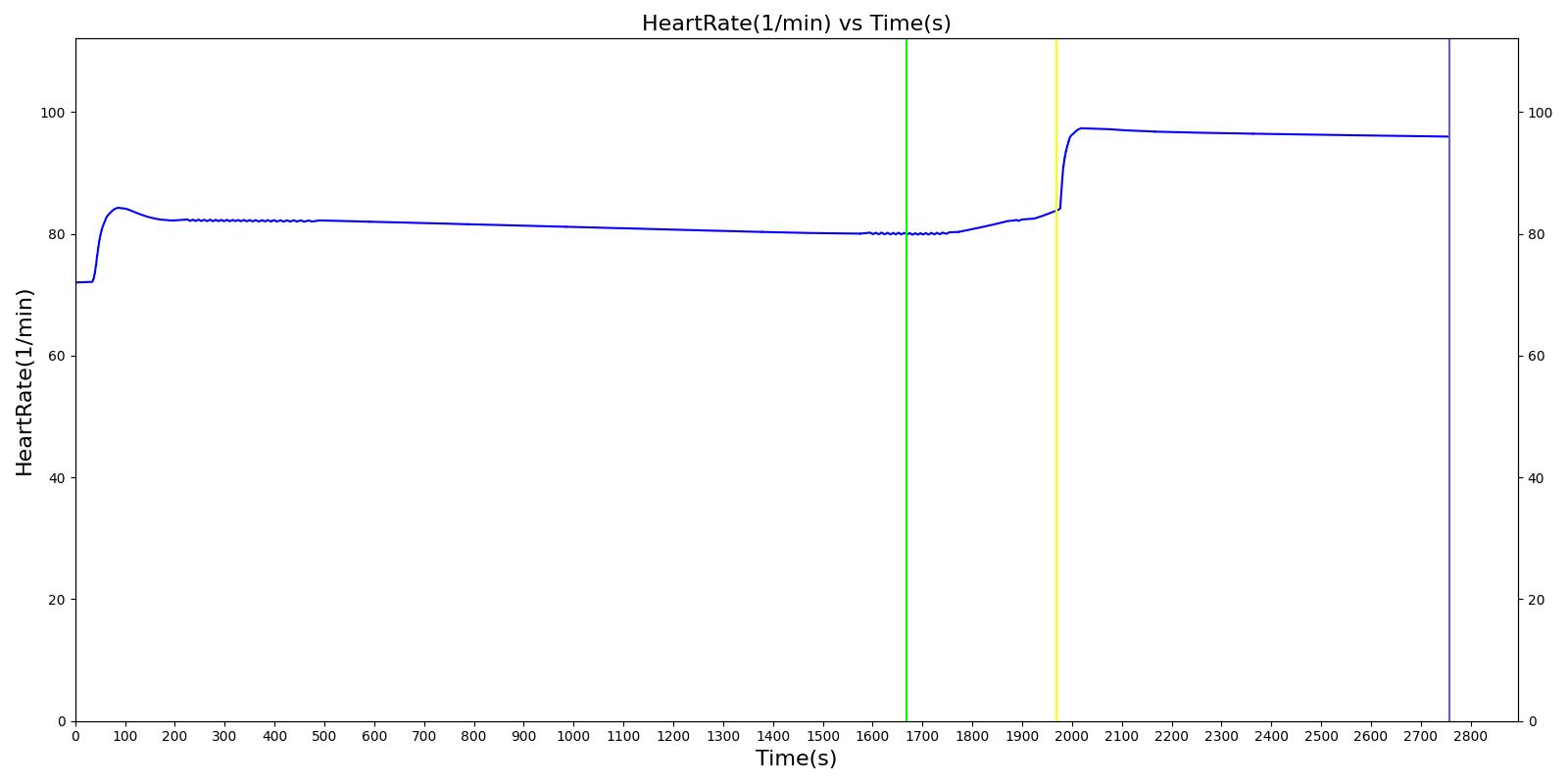

HeartRate(1/min) 79.9
SystolicArterialPressure(mmHg) 110
DiastolicArterialPressure(mmHg) 75.7
MechanicalVentilator-TotalPulmonaryVentilation(L/min) 9.08
MechanicalVentilator-InspiratoryResistance(cmH2O_s/L) 24.0
MechanicalVentilator-ExpiratoryResistance(cmH2O_s/L) 37.0
MechanicalVentilator-StaticRespiratoryCompliance(mL/cmH2O) 63.9
MechanicalVentilator-DynamicRespiratoryCompliance(mL/cmH2O) 16.2
MechanicalVentilator-EndTidalCarbonDioxidePressure(mmHg) 38.3
MechanicalVentilator-EndTidalOxygenPressure(mmHg) 261
MechanicalVentilator-ExpiratoryTidalVolume(L) 0.650
MechanicalVentilator-InspiratoryExpiratoryRatio 0.162
MechanicalVentilator-InspiratoryTidalVolume(L) 0.650
MechanicalVentilator-PeakExpiratoryFlow(L/s) 0.321
MechanicalVentilator-LeakFraction 0.00
MechanicalVentilator-IntrinsicPositiveEndExpiratoryPressure(cmH2O) 2.13
MechanicalVentilator-ExtrinsicPositiveEndExpiratoryPressure(cmH2O) 5.00
MechanicalVentilator-TotalPositiveEndExpiratoryPressure(cmH2O) 7.13
PhysiologicDeadSpaceTidalVolumeRatio 0.477
PhysiologicShuntFraction 0.193
TotalRespiratoryModelInspiratoryResistance(cmH2O_s/L) 23.5
TotalRespiratoryModelExpiratoryResistance(cmH2O_s/L) 37.0
TotalRespiratoryModelCompliance(mL/cmH2O) 73.2
ExtrinsicPositiveEndExpiratoryPressure(cmH2O) 5.01
TotalPositiveEndExpiratoryPressure(cmH2O) 7.74
EndTidalCarbonDioxidePressure(mmHg) 40.3
PhysiologicDeadSpace(mL) 236
AlveolarArterialGradient(mmHg) 184

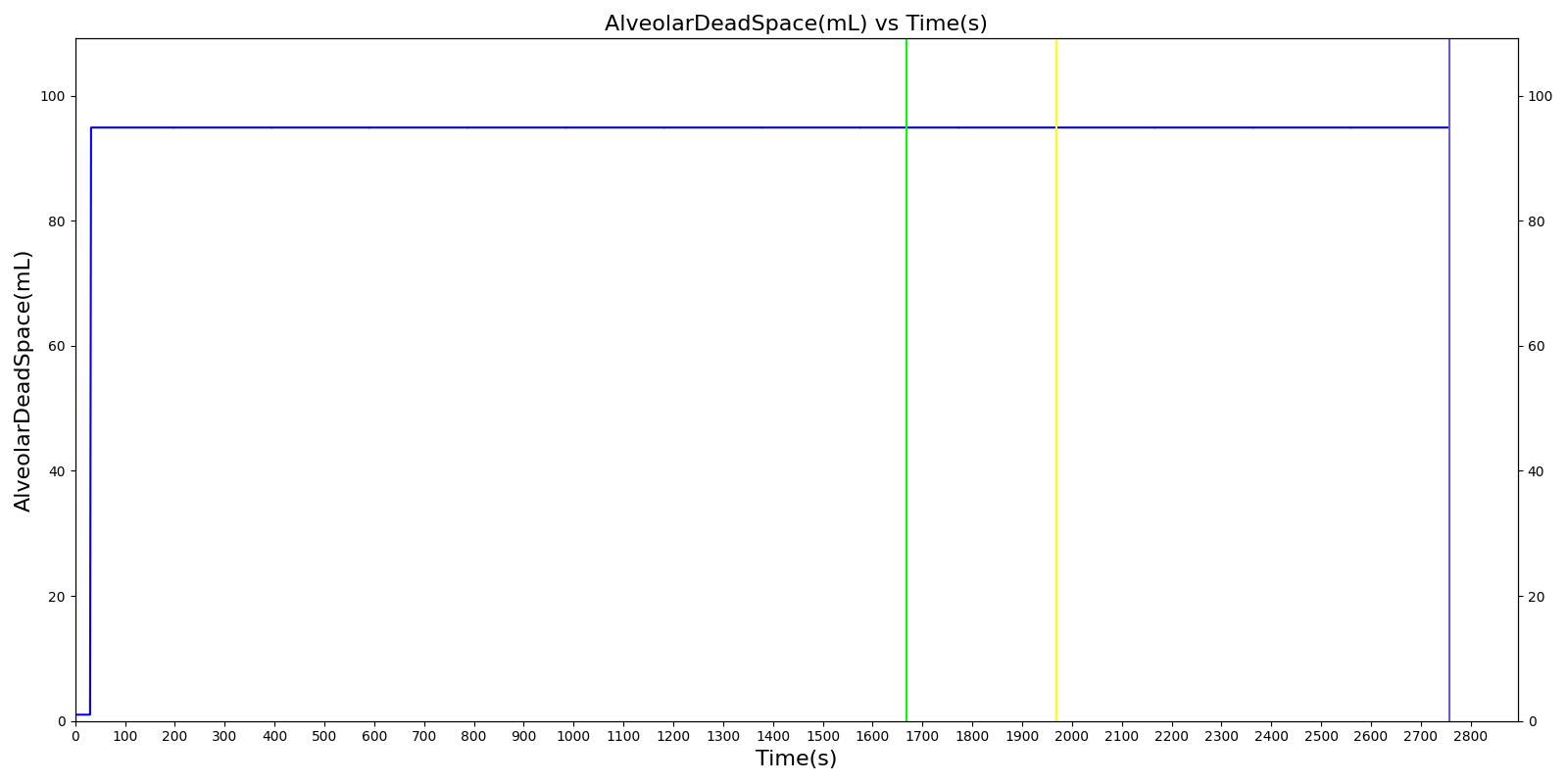

AlveolarDeadSpace(mL) 94.9
AnatomicDeadSpace(mL) 141
ChestWallCompliance(L/cmH2O) 0.201
FractionOfInspiredOxygen 0.400
LungCompliance(L/cmH2O) 0.0972
VentilationPerfusionRatio 1.73
HeartStrokeVolume(mL) 68.2
HeartEjectionFraction 0.519
BloodVolume(L) 6.61

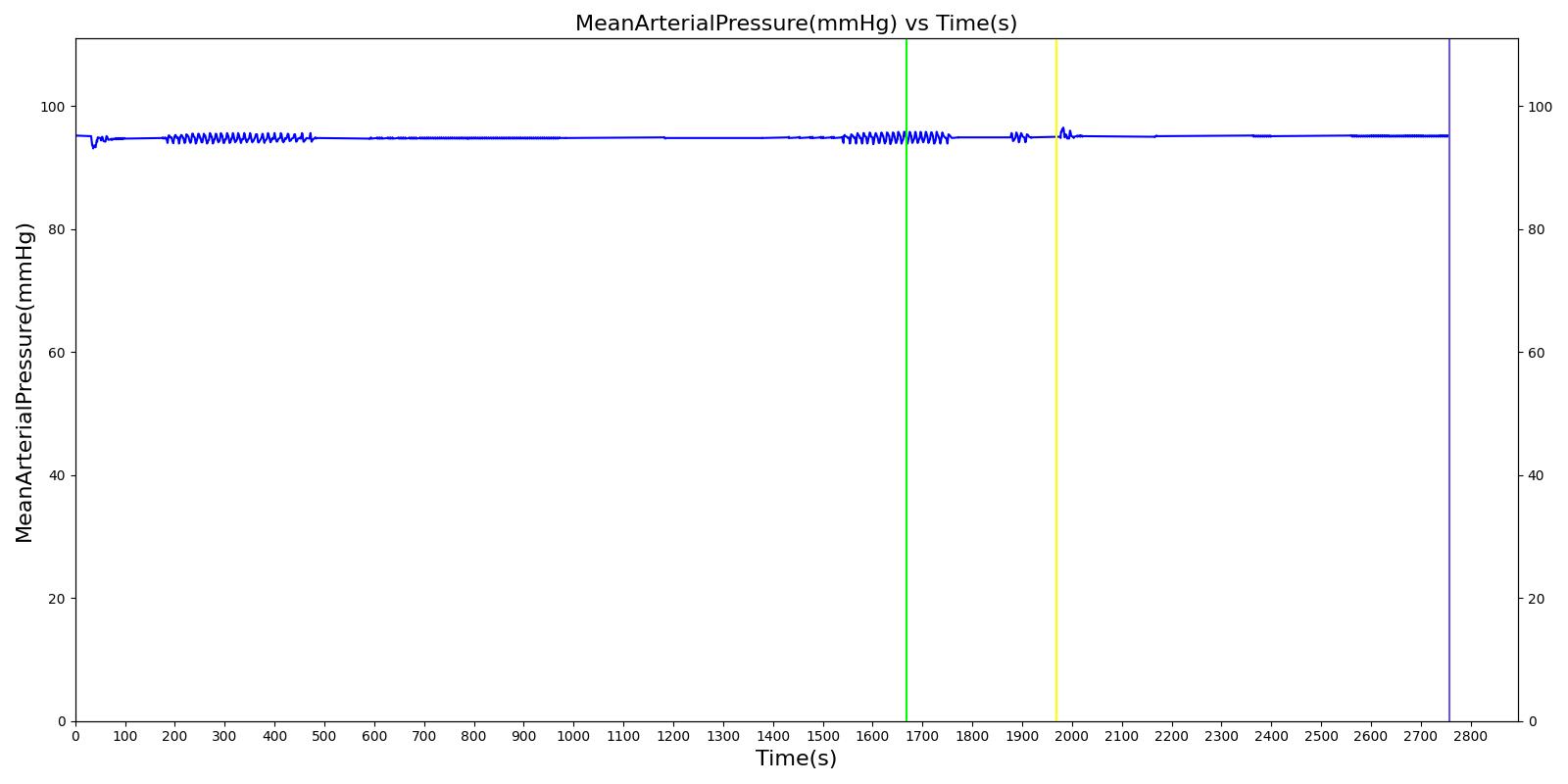

MeanArterialPressure(mmHg) 94.1
PulsePressure(mmHg) 34.6
CardiacOutput(L/min) 5.45
CarbonDioxideSaturation 0.173
RespiratoryExchangeRatio 0.814
SystemicVascularResistance(mmHg_s/mL) 0.982
OxygenConsumptionRate(mL/min) 263
CarbonDioxideProductionRate(mL/min) 214
Patient-AlveoliSurfaceArea(m^2) 12.8
Patient-ExpiratoryReserveVolume(L) 0.876

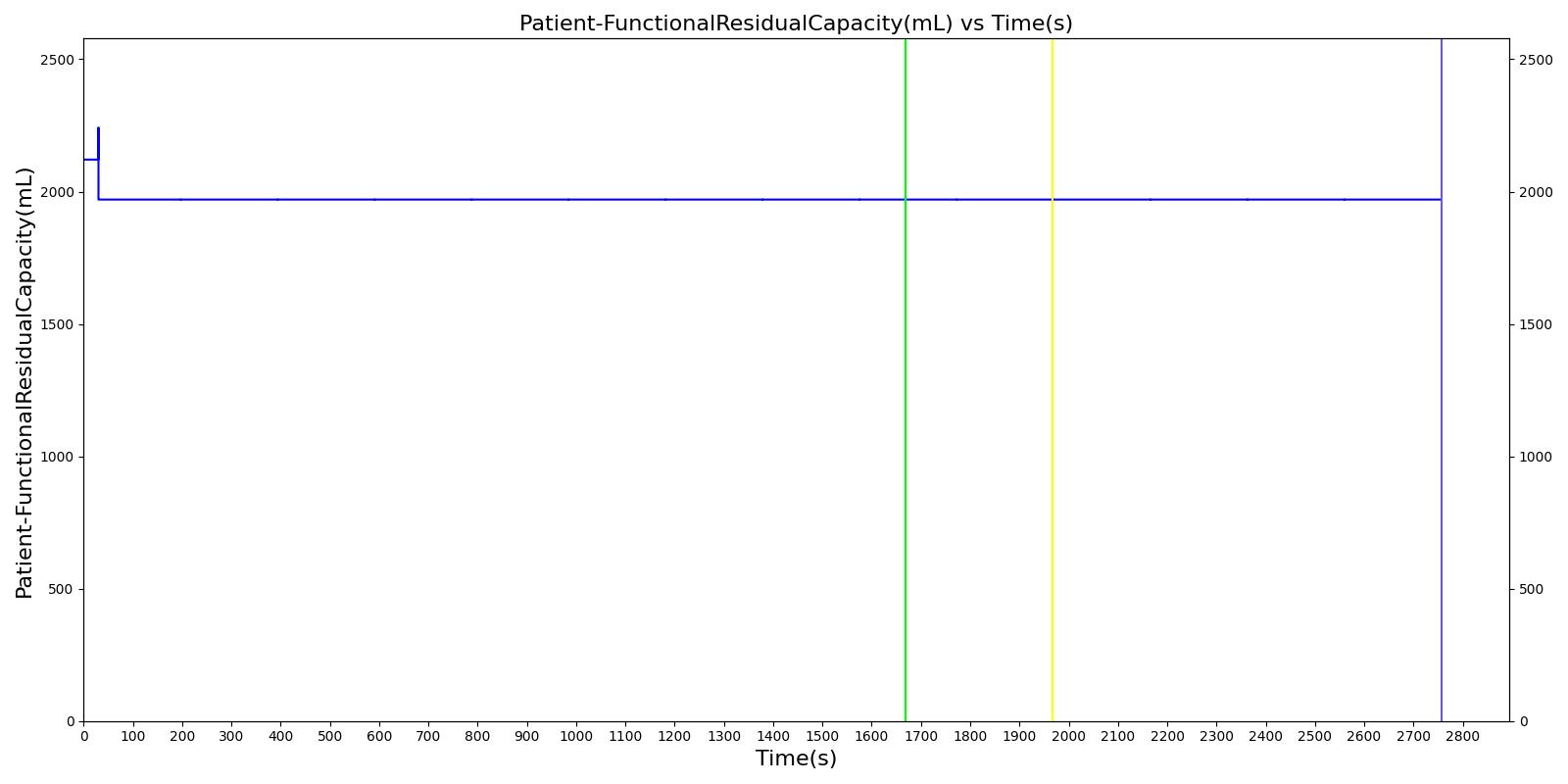

Patient-FunctionalResidualCapacity(L) 1.97
Patient-InspiratoryCapacity(L) 3.13
Patient-InspiratoryReserveVolume(L) 2.59
Patient-ResidualVolume(L) 1.09
Patient-TidalVolumeBaseline(L) 0.540
Patient-TotalLungCapacity(L) 5.10
Patient-VitalCapacity(L) 4.00

Segment 2

Twenty minutes into the transport the ventilator begins alarming.

Learning Objectives:

  • Identify alarms
  • Recognize increased airway resistance (PIP much higher than Pplat)
  • Recognize autoPEEP (from flow waveform)

Recommended Actions:

  • Check airway patency (secretions?) suction ETT
  • Check breath sounds (wheezing?) - suspect bronchospasm and consider bronchodilator
Table 3. Data request validation results for Segment 2.
Property Name Validation Engine Value Percent Error Percent Change Notes

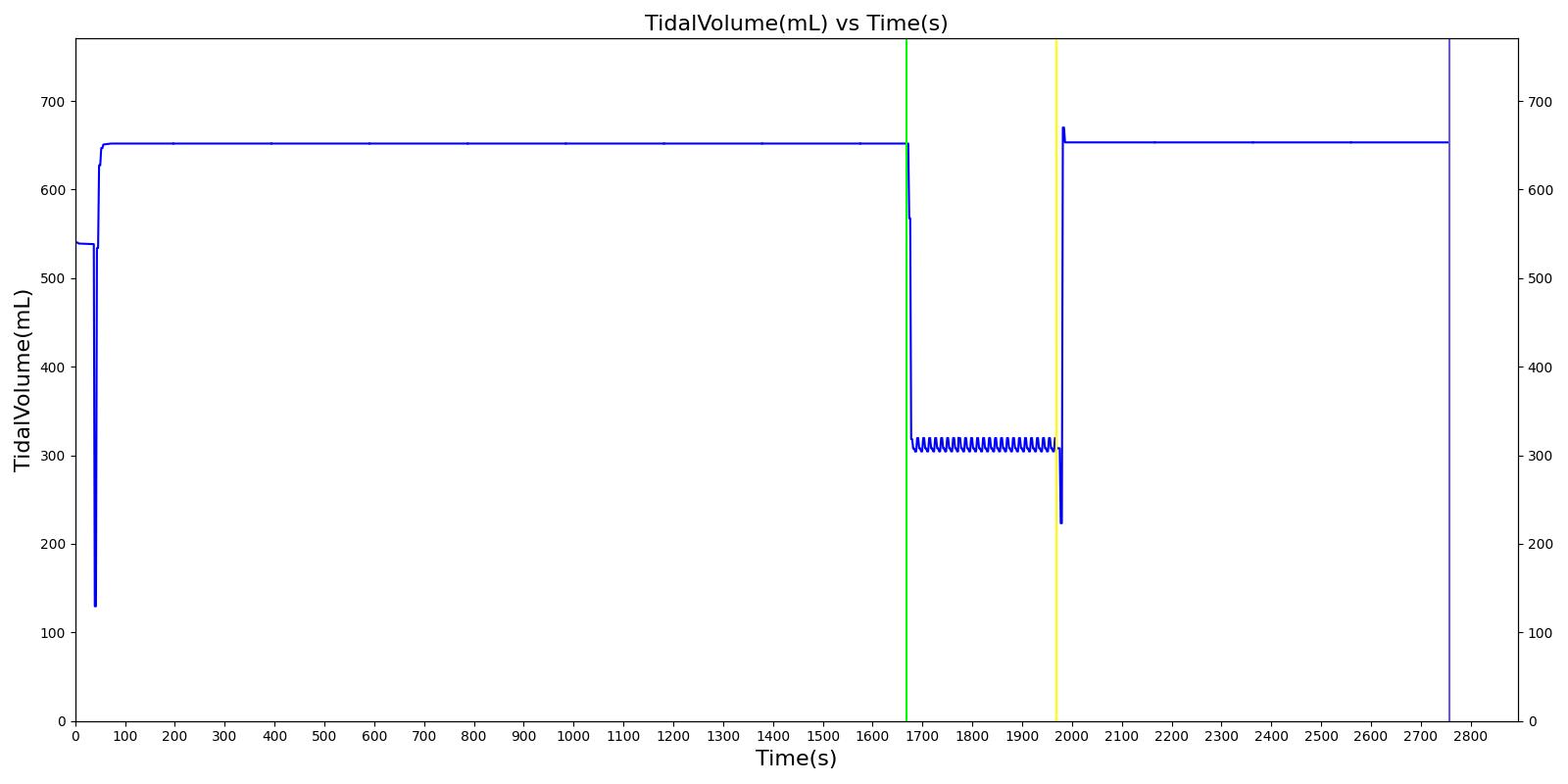

MechanicalVentilator-TidalVolume(mL) LessThan Segment1 (650) 302   -53.6% VT for PIP alarm cycling
InspiratoryRespiratoryResistance(cmH2O_s/L) GreaterThan Segment1 (24.0) [304] [308] 33.8   41.2% Rinsp
ExpiratoryRespiratoryResistance(cmH2O_s/L) GreaterThan Segment1 (36.9) [304] [308] 50.6   37.0% Rexp
MechanicalVentilator-PeakInspiratoryPressure(cmH2O) GreaterThan Segment1 (45.0) [304] [308] 50.1   11.2% PIP

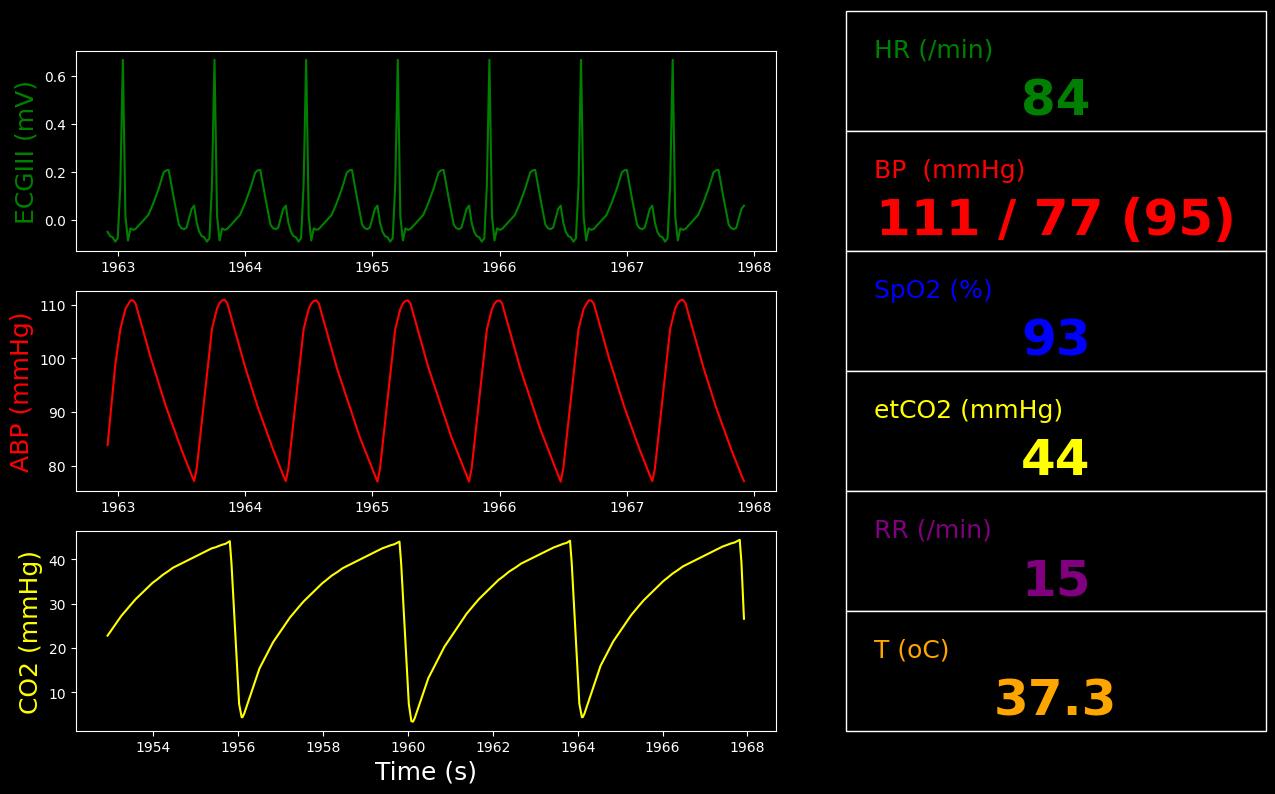

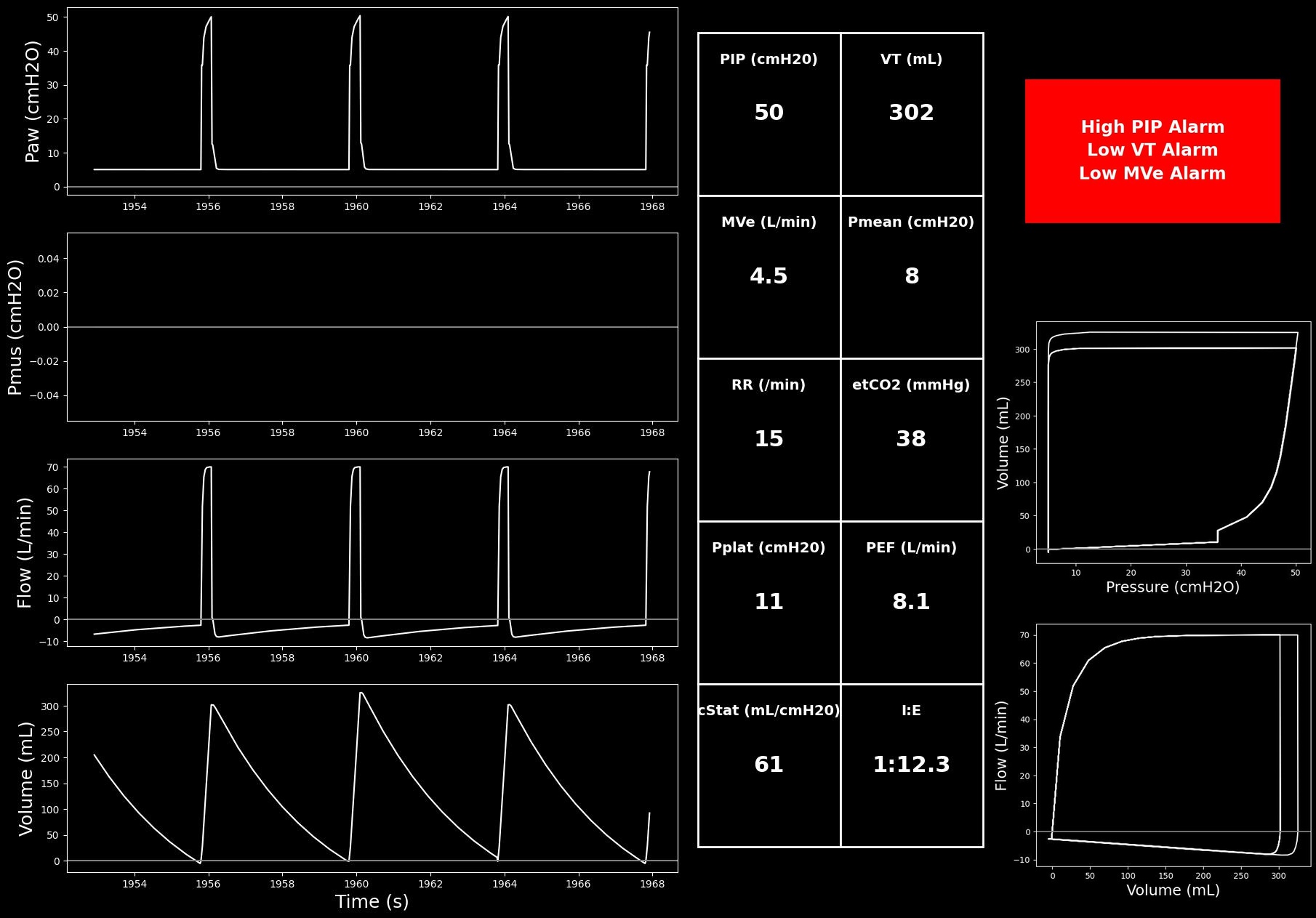

Figure 3. Vitals and ventilator monitors for Segment 2.


Table 4. Data requests for Segment 2.
Property Name Engine Value
Patient-Height(in) 69.0
Patient-IdealBodyWeight(kg) 70.7
InspiratoryRespiratoryResistance(cmH2O_s/L) 33.8
ExpiratoryRespiratoryResistance(cmH2O_s/L) 50.6
RespiratoryCompliance(mL/cmH2O) 60.7
ClinicalPhysiologicDeadSpaceTidalVolumeRatio 0.462
ClinicalShuntFraction 0.189
MechanicalVentilator-TidalVolume(L) 0.302
BloodPH 7.27
Aorta-Oxygen-PartialPressure(mmHg) 69.3
Aorta-CarbonDioxide-PartialPressure(mmHg) 57.2
Aorta-Bicarbonate-Molarity(mEq/L) 26.7
OxygenSaturation 0.926
HorowitzIndex(mmHg) 179
IntrinsicPositiveEndExpiratoryPressure(cmH2O) 2.22

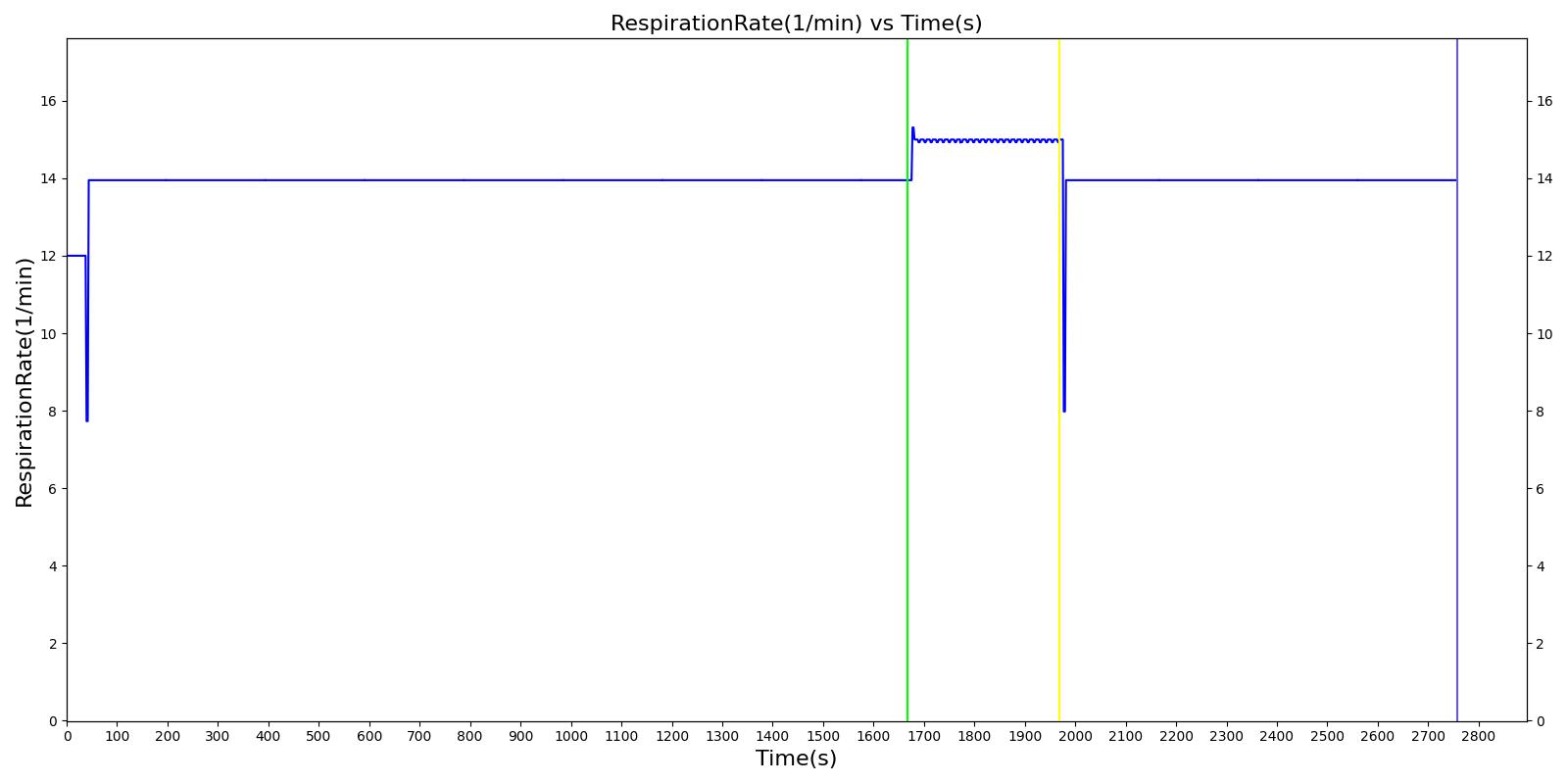

MechanicalVentilator-RespirationRate(1/min) 15.0
MechanicalVentilator-MeanAirwayPressure(cmH2O) 7.98
MechanicalVentilator-PeakInspiratoryPressure(cmH2O) 50.1
MechanicalVentilator-PlateauPressure(cmH2O) 11.5
HeartRate(1/min) 83.8
SystolicArterialPressure(mmHg) 111
DiastolicArterialPressure(mmHg) 77.1
MechanicalVentilator-TotalPulmonaryVentilation(L/min) 4.52
MechanicalVentilator-InspiratoryResistance(cmH2O_s/L) 33.7
MechanicalVentilator-ExpiratoryResistance(cmH2O_s/L) 50.6
MechanicalVentilator-StaticRespiratoryCompliance(mL/cmH2O) 60.7
MechanicalVentilator-DynamicRespiratoryCompliance(mL/cmH2O) 6.69
MechanicalVentilator-EndTidalCarbonDioxidePressure(mmHg) 37.9
MechanicalVentilator-EndTidalOxygenPressure(mmHg) 217
MechanicalVentilator-ExpiratoryTidalVolume(L) 0.307
MechanicalVentilator-InspiratoryExpiratoryRatio 0.0811
MechanicalVentilator-InspiratoryTidalVolume(L) 0.302
MechanicalVentilator-PeakExpiratoryFlow(L/s) 0.136
MechanicalVentilator-LeakFraction 0.00
MechanicalVentilator-IntrinsicPositiveEndExpiratoryPressure(cmH2O) 1.49
MechanicalVentilator-ExtrinsicPositiveEndExpiratoryPressure(cmH2O) 5.00
MechanicalVentilator-TotalPositiveEndExpiratoryPressure(cmH2O) 6.49
PhysiologicDeadSpaceTidalVolumeRatio 0.477
PhysiologicShuntFraction 0.193
TotalRespiratoryModelInspiratoryResistance(cmH2O_s/L) 32.5
TotalRespiratoryModelExpiratoryResistance(cmH2O_s/L) 50.5
TotalRespiratoryModelCompliance(mL/cmH2O) 68.4
ExtrinsicPositiveEndExpiratoryPressure(cmH2O) 5.00
TotalPositiveEndExpiratoryPressure(cmH2O) 7.23
EndTidalCarbonDioxidePressure(mmHg) 44.4
PhysiologicDeadSpace(mL) 236
AlveolarArterialGradient(mmHg) 104
AlveolarDeadSpace(mL) 94.9
AnatomicDeadSpace(mL) 141
ChestWallCompliance(L/cmH2O) 0.165
FractionOfInspiredOxygen 0.387
LungCompliance(L/cmH2O) 0.0972
VentilationPerfusionRatio 0.875
HeartStrokeVolume(mL) 65.9
HeartEjectionFraction 0.509
BloodVolume(L) 6.62
MeanArterialPressure(mmHg) 95.0
PulsePressure(mmHg) 33.8
CardiacOutput(L/min) 5.53
CarbonDioxideSaturation 0.485
RespiratoryExchangeRatio 0.819
SystemicVascularResistance(mmHg_s/mL) 0.979
OxygenConsumptionRate(mL/min) 268
CarbonDioxideProductionRate(mL/min) 219

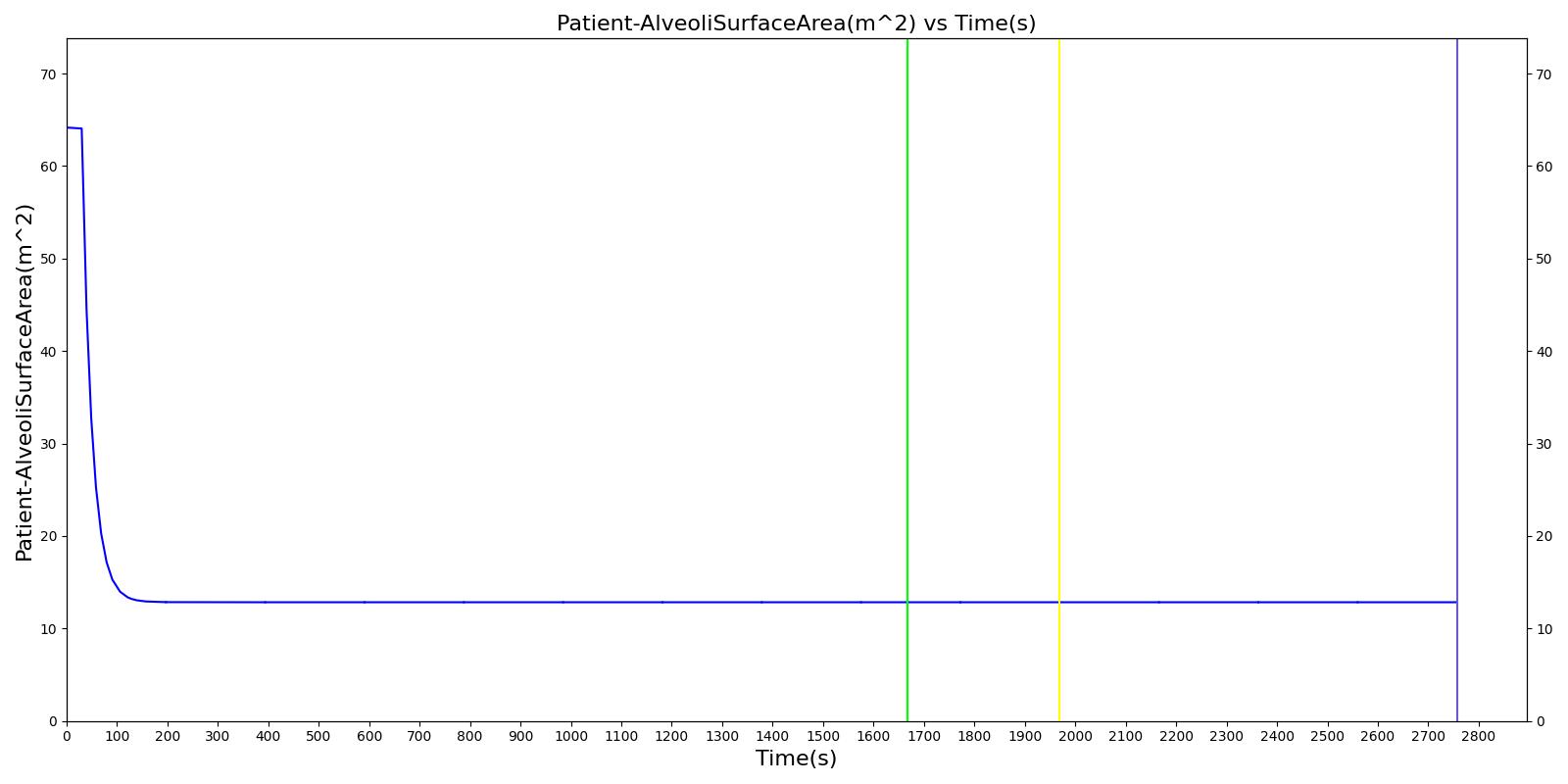

Patient-AlveoliSurfaceArea(m^2) 12.8
Patient-ExpiratoryReserveVolume(L) 0.876
Patient-FunctionalResidualCapacity(L) 1.97
Patient-InspiratoryCapacity(L) 3.13
Patient-InspiratoryReserveVolume(L) 2.59
Patient-ResidualVolume(L) 1.09
Patient-TidalVolumeBaseline(L) 0.540
Patient-TotalLungCapacity(L) 5.10
Patient-VitalCapacity(L) 4.00

Segment 3

Patient suctioned and albuterol administered.

Learning Objectives:

  • Recognize that treatment reduced airway resistance (lower difference PIP - Pplat)
  • AutoPEEP reduced

Recommended Actions:

  • Decrease FiO2
Table 5. Data request validation results for Segment 3.
Property Name Validation Engine Value Percent Error Percent Change Notes
MechanicalVentilator-TidalVolume(mL) EqualTo 650 653 0.500%   VT (measured)
InspiratoryRespiratoryResistance(cmH2O_s/L) LessThan Segment2 (33.8) [304] [308] 10.1   -70.3% Rinsp
ExpiratoryRespiratoryResistance(cmH2O_s/L) LessThan Segment2 (50.6) [304] [308] 10.1   -80.1% Rexp
MechanicalVentilator-PeakInspiratoryPressure(cmH2O) LessThan Segment2 (50.1) [304] [308] 27.1   -45.8% PIP

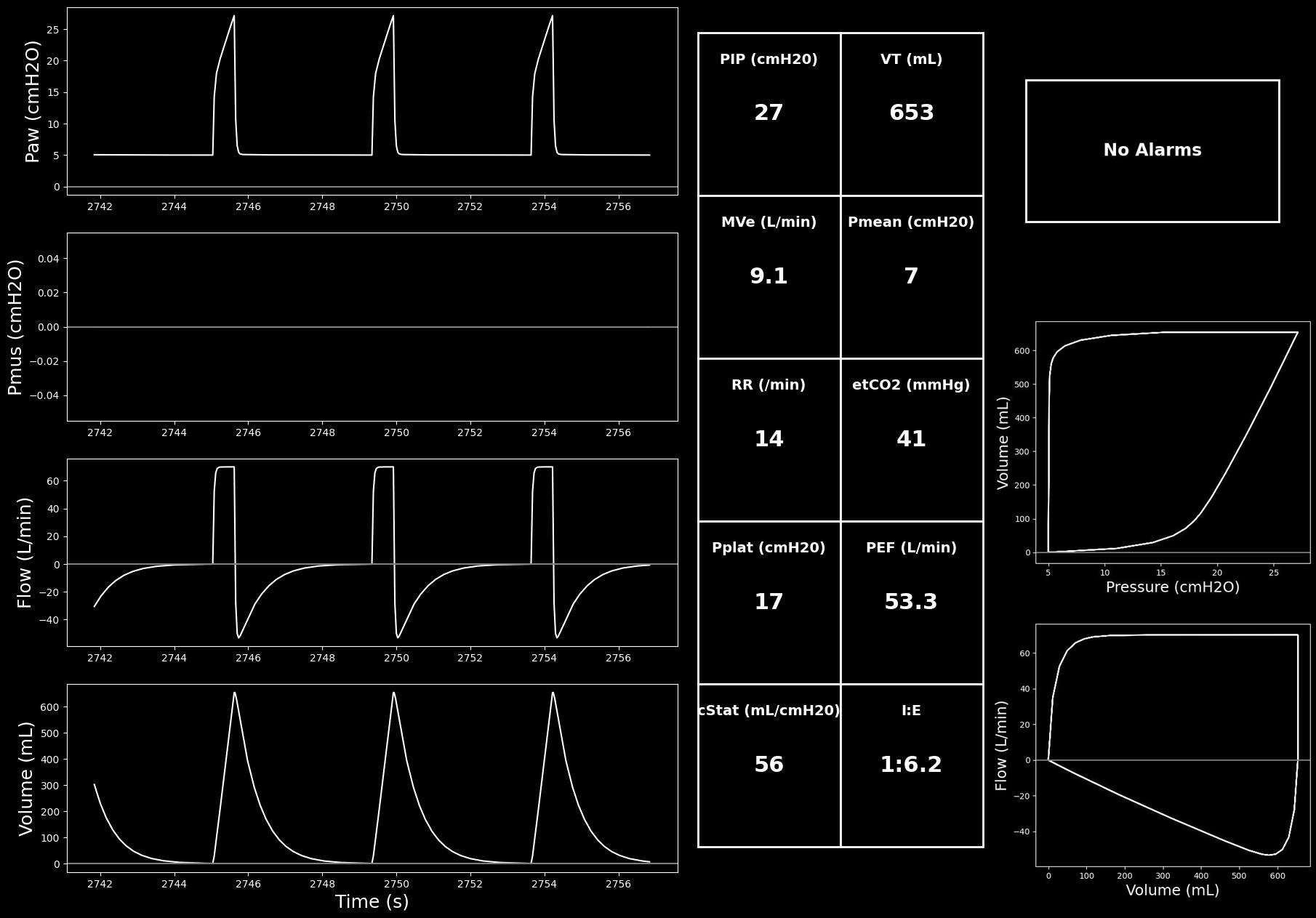

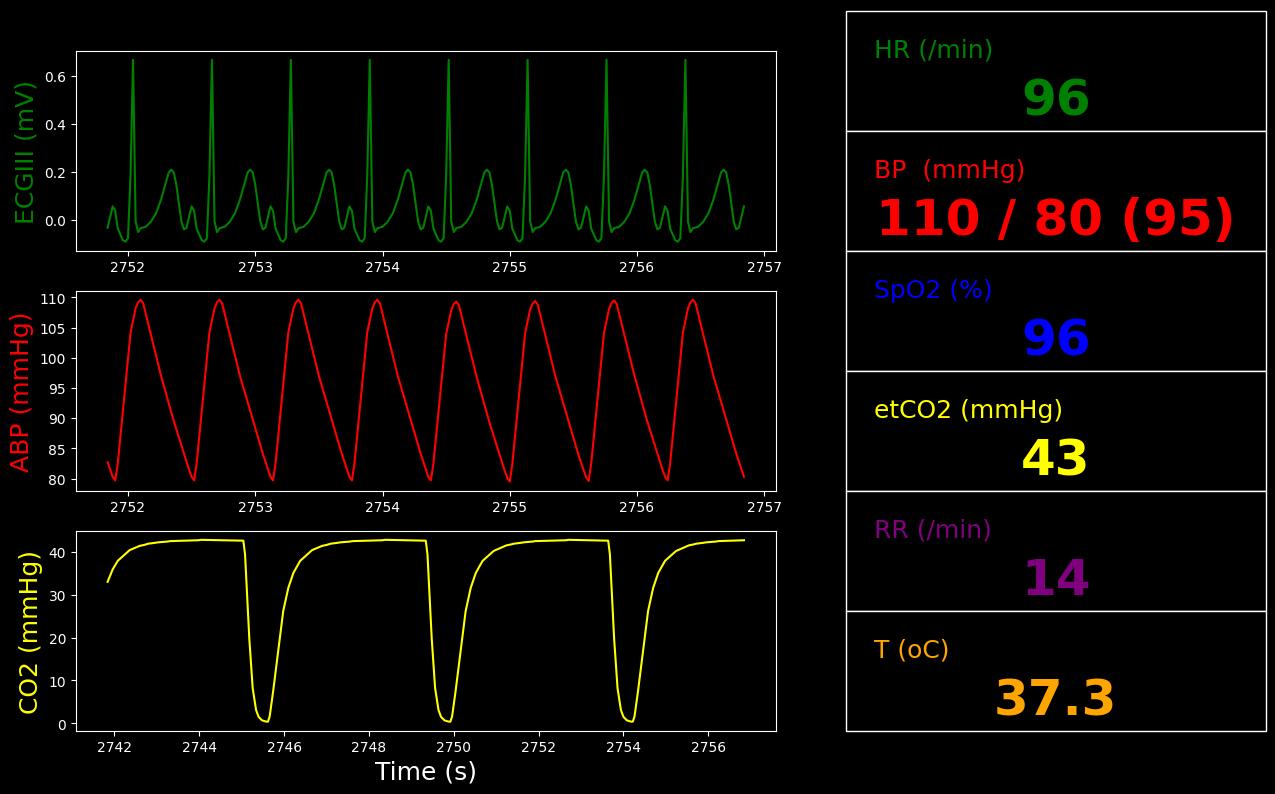

Figure 4. Vitals and ventilator monitors for Segment 3.


Table 6. Data requests for Segment 3.
Property Name Engine Value
Patient-Height(in) 69.0
Patient-IdealBodyWeight(kg) 70.7
InspiratoryRespiratoryResistance(cmH2O_s/L) 10.1
ExpiratoryRespiratoryResistance(cmH2O_s/L) 10.1
RespiratoryCompliance(mL/cmH2O) 57.0

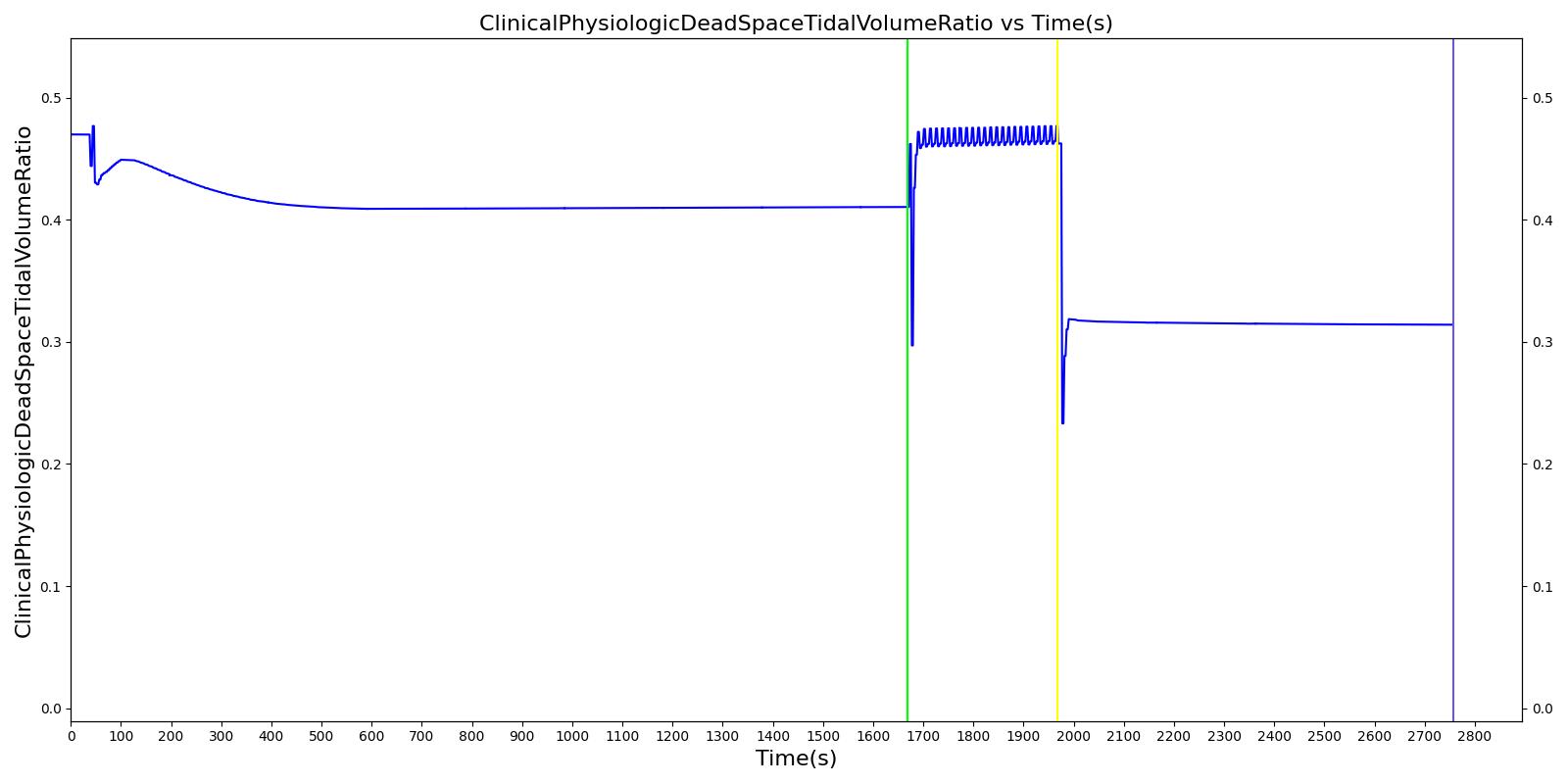

ClinicalPhysiologicDeadSpaceTidalVolumeRatio 0.314
ClinicalShuntFraction 0.187
MechanicalVentilator-TidalVolume(L) 0.653
BloodPH 7.32
Aorta-Oxygen-PartialPressure(mmHg) 81.1
Aorta-CarbonDioxide-PartialPressure(mmHg) 50.5
Aorta-Bicarbonate-Molarity(mEq/L) 26.4
OxygenSaturation 0.956
HorowitzIndex(mmHg) 203
IntrinsicPositiveEndExpiratoryPressure(cmH2O) 0.0186
MechanicalVentilator-RespirationRate(1/min) 14.0
MechanicalVentilator-MeanAirwayPressure(cmH2O) 7.37
MechanicalVentilator-PeakInspiratoryPressure(cmH2O) 27.1
MechanicalVentilator-PlateauPressure(cmH2O) 16.7
HeartRate(1/min) 96.0
SystolicArterialPressure(mmHg) 110
DiastolicArterialPressure(mmHg) 79.7
MechanicalVentilator-TotalPulmonaryVentilation(L/min) 9.12
MechanicalVentilator-InspiratoryResistance(cmH2O_s/L) 10.1
MechanicalVentilator-ExpiratoryResistance(cmH2O_s/L) 10.1
MechanicalVentilator-StaticRespiratoryCompliance(mL/cmH2O) 56.1
MechanicalVentilator-DynamicRespiratoryCompliance(mL/cmH2O) 29.5
MechanicalVentilator-EndTidalCarbonDioxidePressure(mmHg) 41.3
MechanicalVentilator-EndTidalOxygenPressure(mmHg) 260
MechanicalVentilator-ExpiratoryTidalVolume(L) 0.653
MechanicalVentilator-InspiratoryExpiratoryRatio 0.162
MechanicalVentilator-InspiratoryTidalVolume(L) 0.653
MechanicalVentilator-PeakExpiratoryFlow(L/s) 0.889
MechanicalVentilator-LeakFraction 1.09e-11
MechanicalVentilator-IntrinsicPositiveEndExpiratoryPressure(cmH2O) 0.0165
MechanicalVentilator-ExtrinsicPositiveEndExpiratoryPressure(cmH2O) 5.00
MechanicalVentilator-TotalPositiveEndExpiratoryPressure(cmH2O) 5.02
PhysiologicDeadSpaceTidalVolumeRatio 0.477
PhysiologicShuntFraction 0.192
TotalRespiratoryModelInspiratoryResistance(cmH2O_s/L) 10.1
TotalRespiratoryModelExpiratoryResistance(cmH2O_s/L) 10.1
TotalRespiratoryModelCompliance(mL/cmH2O) 66.0
ExtrinsicPositiveEndExpiratoryPressure(cmH2O) 5.00
TotalPositiveEndExpiratoryPressure(cmH2O) 5.02
EndTidalCarbonDioxidePressure(mmHg) 42.6
PhysiologicDeadSpace(mL) 236
AlveolarArterialGradient(mmHg) 172
AlveolarDeadSpace(mL) 94.9
AnatomicDeadSpace(mL) 141
ChestWallCompliance(L/cmH2O) 0.144
FractionOfInspiredOxygen 0.400
LungCompliance(L/cmH2O) 0.0970
VentilationPerfusionRatio 1.70
HeartStrokeVolume(mL) 58.5
HeartEjectionFraction 0.478
BloodVolume(L) 6.66
MeanArterialPressure(mmHg) 95.2
PulsePressure(mmHg) 29.9
CardiacOutput(L/min) 5.61
CarbonDioxideSaturation 0.354
RespiratoryExchangeRatio 0.822
SystemicVascularResistance(mmHg_s/mL) 0.966
OxygenConsumptionRate(mL/min) 266
CarbonDioxideProductionRate(mL/min) 219
Patient-AlveoliSurfaceArea(m^2) 12.8
Patient-ExpiratoryReserveVolume(L) 0.876
Patient-FunctionalResidualCapacity(L) 1.97
Patient-InspiratoryCapacity(L) 3.13
Patient-InspiratoryReserveVolume(L) 2.59
Patient-ResidualVolume(L) 1.09
Patient-TidalVolumeBaseline(L) 0.540
Patient-TotalLungCapacity(L) 5.10
Patient-VitalCapacity(L) 4.00

Scenario Output Plots

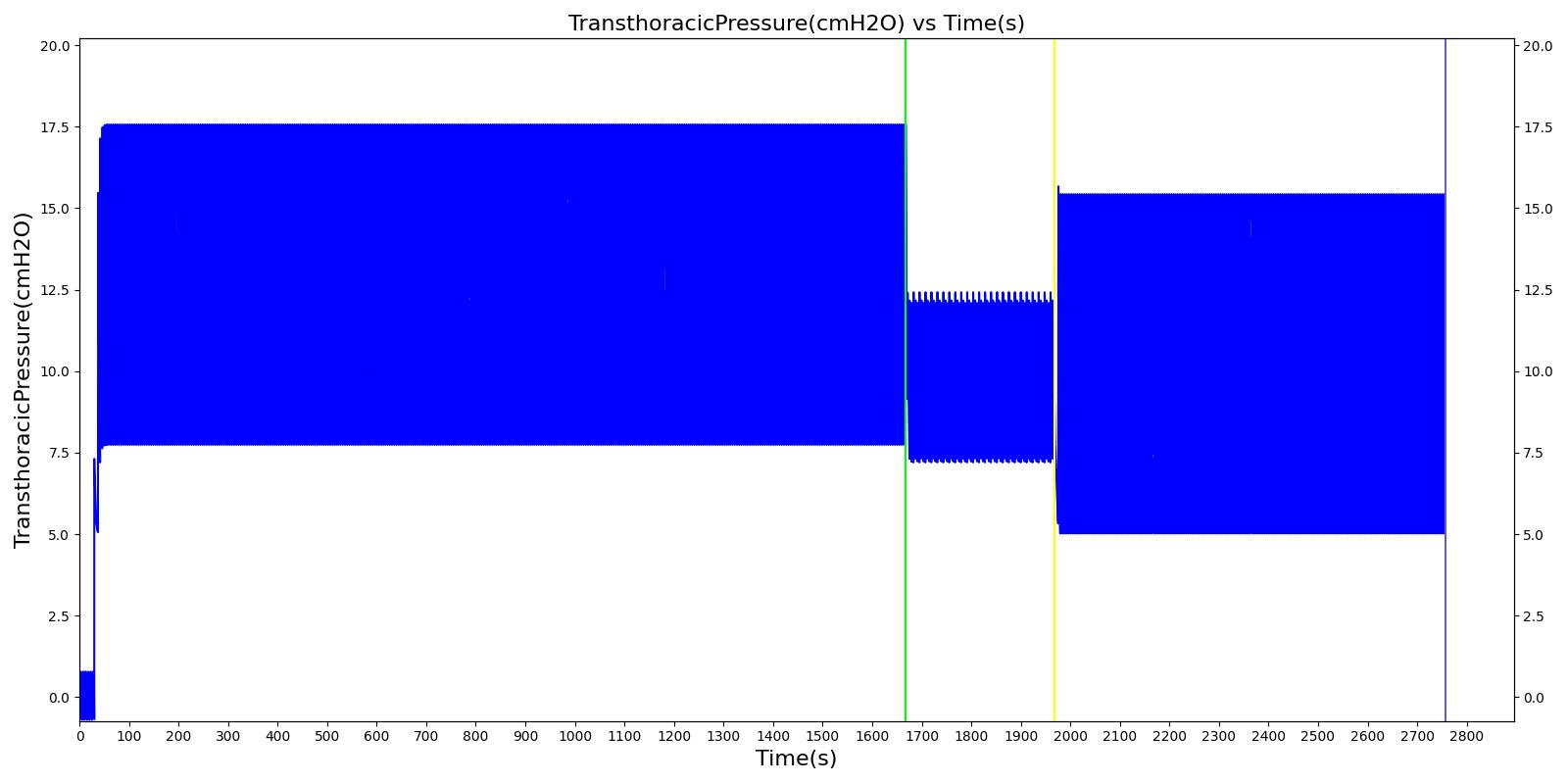

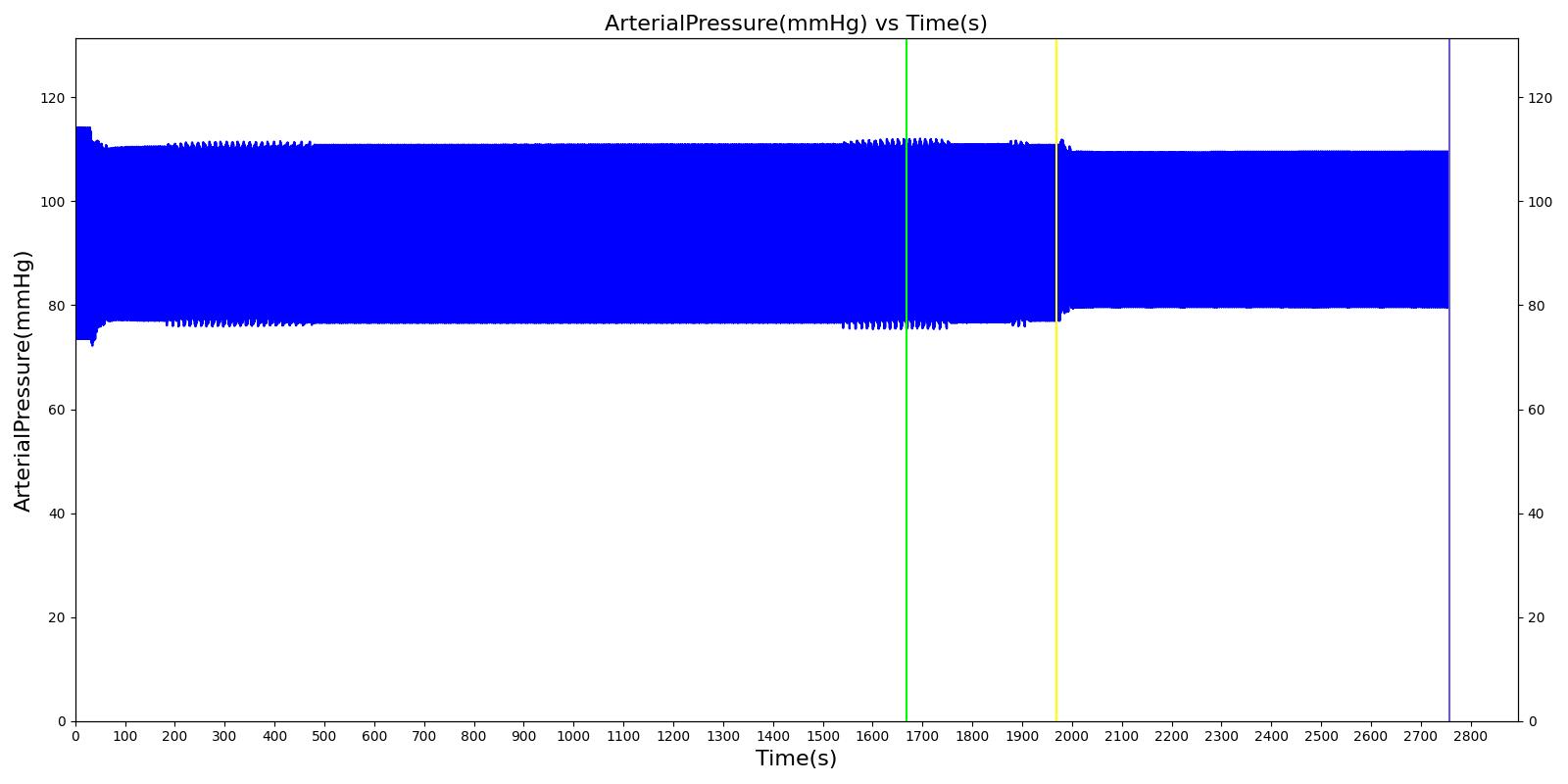

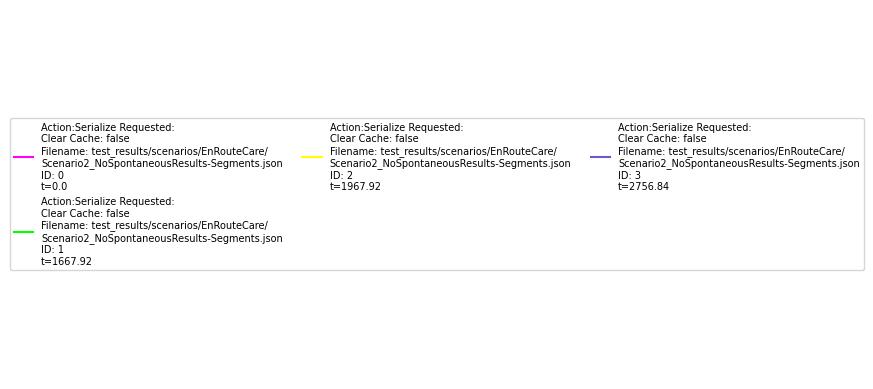

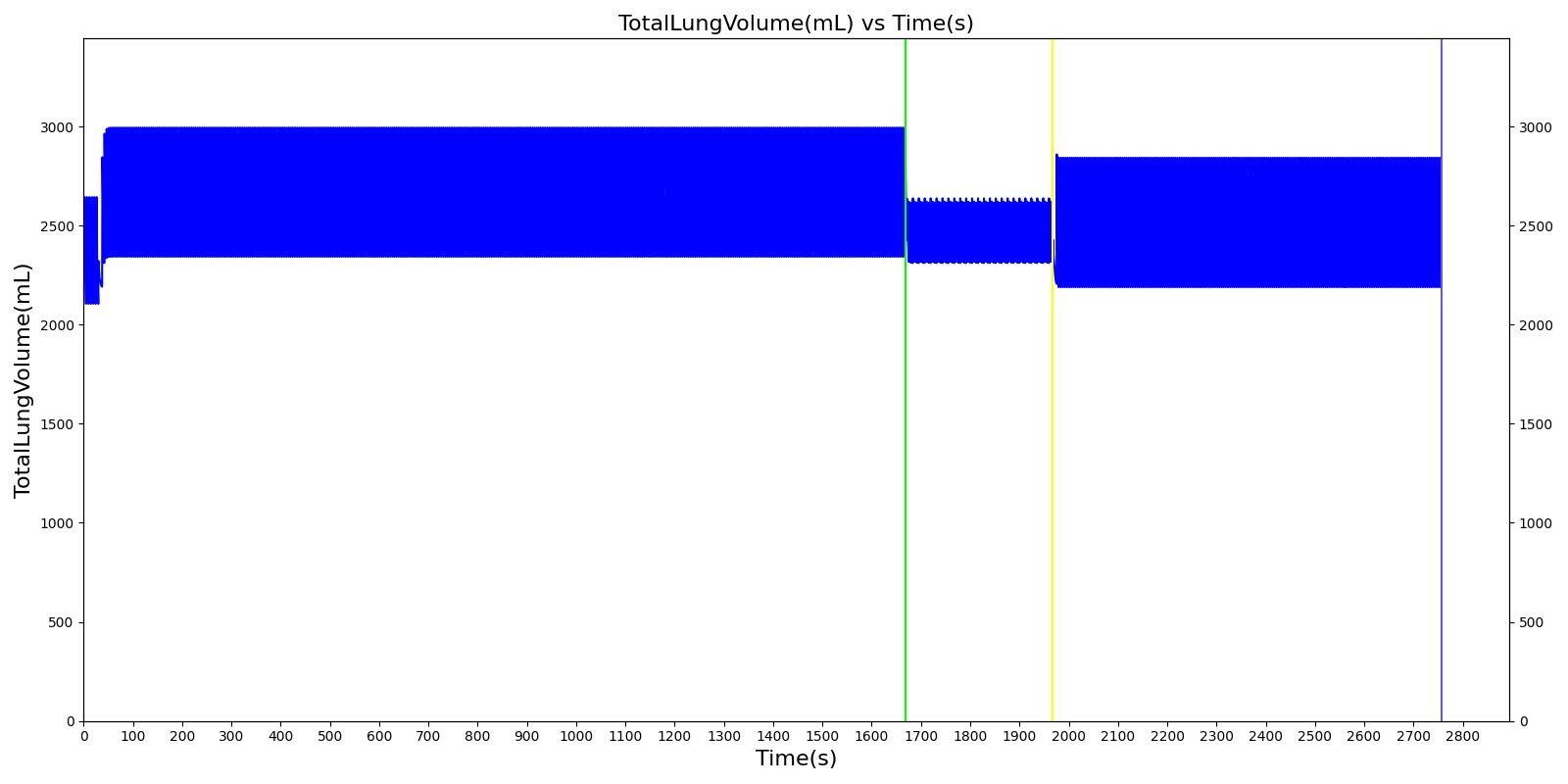

Figure 5. Select outputs from the scenario.


Distributed under the Apache License, Version 2.0.

See accompanying NOTICE file for details.
