HemorrhageFrankelEtAlConstant20

Description

In Frankel, et al. 30 mL/kg (43% blood loss) of venous blood was removed from the pig to produce shock (defined by MAP of 20 mmHg). Shock was defined as maintaining MAP at less than 20mmHg for an hour. Resustitation was then started using Ringer's Lactate and whole blood with a ratio of 2:1 (28ml/kg Ringer's, then 14 ml/kg whole blood) to reach and mantain a MAP of 60mmHg for 120 minutes. The goal of this scenario was a constant hemorrhage rate over 20 minutes (3.0mL/kg/min).

To replicate this, 43% blood loss in the standard female is approximately 1800 mL or 30.5 mL/kg. This is close enough to 30ml/kg.

This is a link to Frankel, et al.

Segment Validation

Segment 1

Lungs were mechanically ventilated in volume-controlled mode with a FiO2 of 0.21 and a PEEP of 5 cm H2O. Tidal volumes were adjusted to 7 to 10 mL/kg at 15 breaths per minute (fixed rate) to achieve a PaCO2 between 35 mmHg and 40 mmHg.

Mode	VT (L)	Flow (L/min)	TI (s)	RR (bpm)	PEEP (cmH2O)	FiO2
VC-CMV	0.475	29	1.0	15	5	0.21

Run to homeostasis.

Table 1. Data request validation results for Segment 1.

Property Name	Validation	Engine Value	Percent Error
HeartRate(1/min)	EqualTo 101 [128]	80.4	-20.44%
MeanArterialPressure(mmHg)	EqualTo 75 [128]	81.2	8.27%
Lactate-BloodConcentration(mg/dL)	EqualTo 20 [128]	15.8	-21.01%
BloodVolume(mL)	EqualTo 4800 [128]	4.22e+03	-12.08%
TotalHemorrhagedVolume(mL)	EqualTo 1770 [128]	0.00	-100.00%

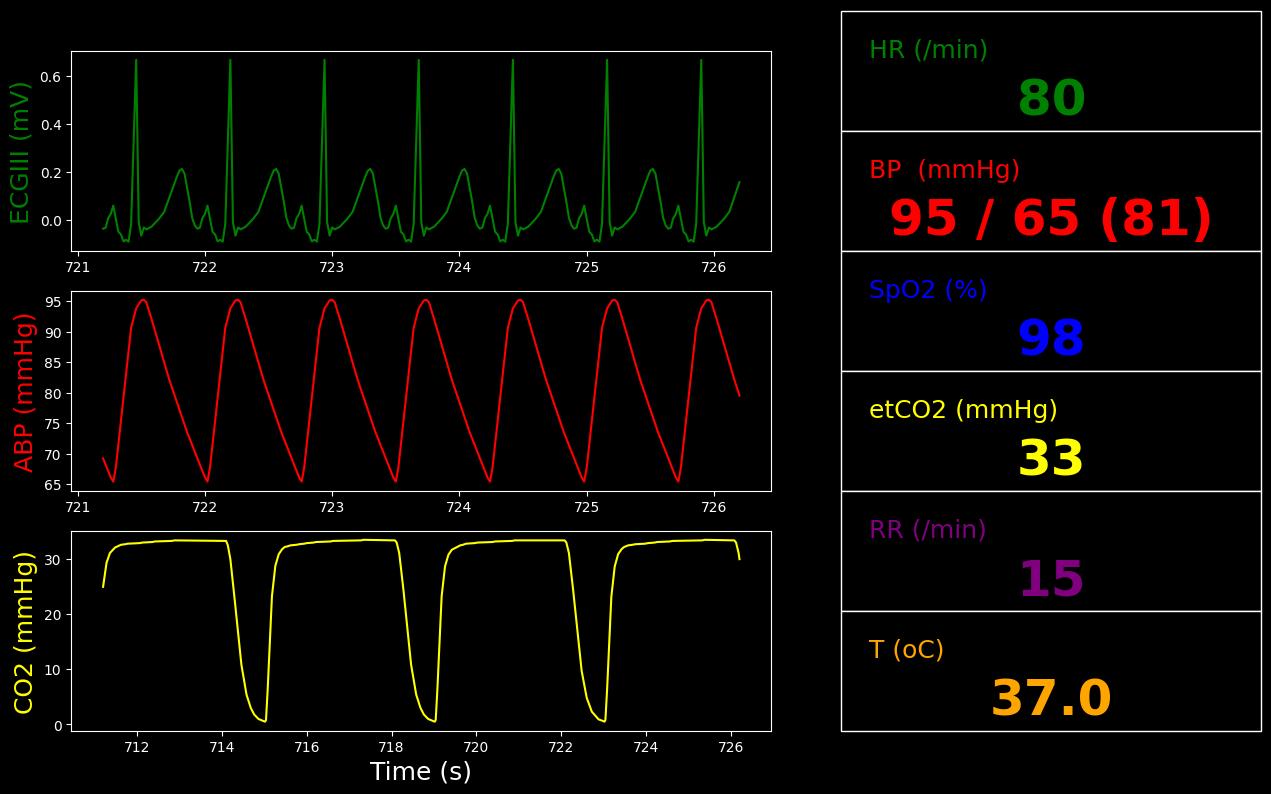

Figure 1. Vitals monitor for Segment 1.

Segment 2

Initiate a controlled hemorrhage corresponding to 30 mL/kg for a 59 kg female. 59kg*30 ml/kg = 1770 ml -> / 20 min = 88.5 ml/min. This was pulled from the vena cava. Simulate for 20 minutes.

Table 2. Data request validation results for Segment 2.

Property Name	Validation	Engine Value	Percent Error
HeartRate(1/min)	EqualTo 1.19*Segment1 (95.6) [128]	133	39.50%
MeanArterialPressure(mmHg)	EqualTo 0.27*Segment1 (21.9) [128]	34.7	58.11%
Lactate-BloodConcentration(mg/dL)	EqualTo 3.25*Segment1 (51.3) [128]	26.1	-49.13%
BloodVolume(mL)	EqualTo 2412 [128]	2.47e+03	2.45%
TotalHemorrhagedVolume(mL)	EqualTo 1770 [128]	1.77e+03	0.00%

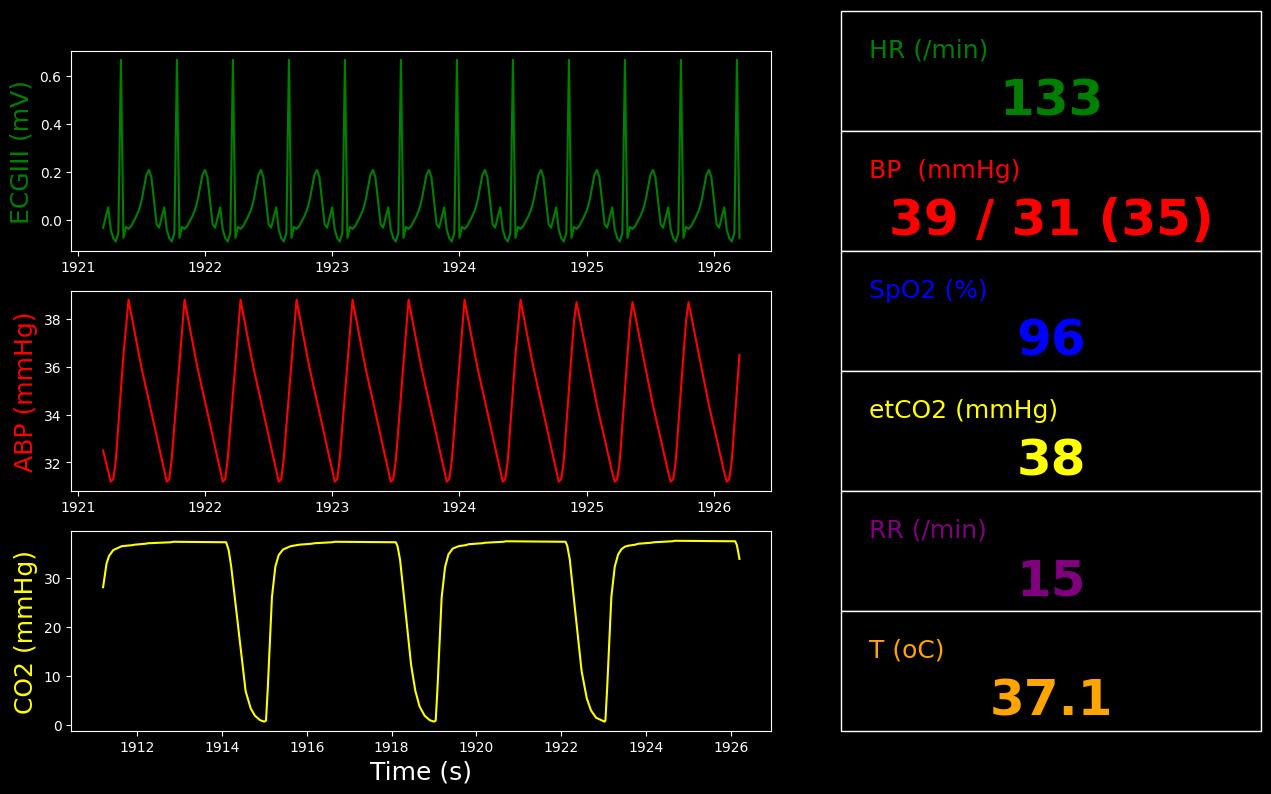

Figure 2. Vitals monitor for Segment 2.

Segment 3

Stop the controlled hemorrhages. Simulate for 40 minutes.

Table 3. Data request validation results for Segment 3.

Property Name	Validation	Engine Value	Percent Error
HeartRate(1/min)	EqualTo Segment2 (133) [128]	135	1.25%
MeanArterialPressure(mmHg)	EqualTo Segment2 (34.7) [128]	35.9	3.50%
Lactate-BloodConcentration(mg/dL)	EqualTo Segment2 (26.1) [128]	101	287.14%
BloodVolume(mL)	EqualTo 2412 [128]	2.48e+03	2.85%
TotalHemorrhagedVolume(mL)	EqualTo 1770 [128]	1.77e+03	0.00%

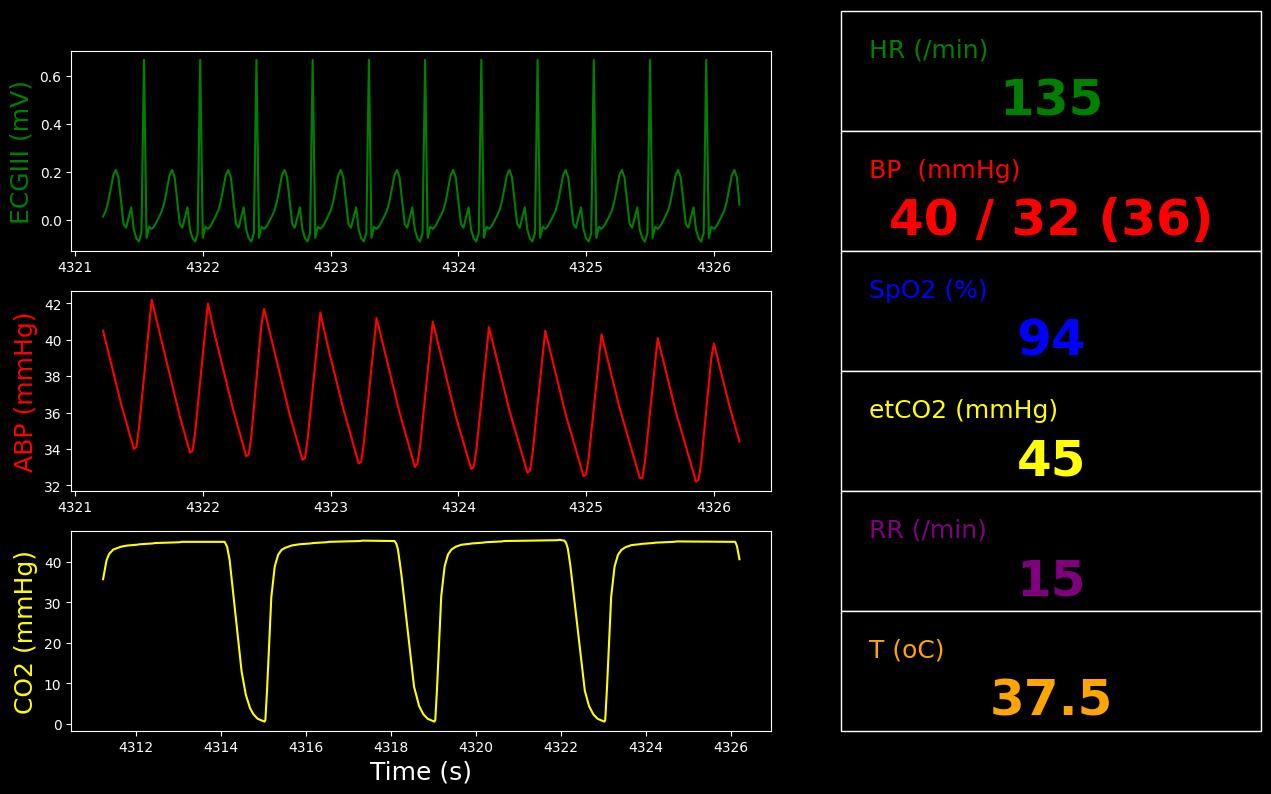

Figure 3. Vitals monitor for Segment 3.

Segment 4

Initiate fluid resuscitation corresponding to 28 mL/kg total for a 59 kg female pig. 59kg*28 ml/kg = 1770ml -> / 60 min = 28 ml/min. Initiate fluid resuscitation with blood corresponding to 14 mL/kg total for a 59 kg female pig. 59kg*14 ml/kg = 826ml -> / 60 min = 14 ml/min. Simulate for 60 minutes.

Table 4. Data request validation results for Segment 4.

Property Name	Validation	Engine Value	Percent Error
HeartRate(1/min)	EqualTo Segment3 (135) [128]	59.1	-56.22%
MeanArterialPressure(mmHg)	EqualTo Segment3 (35.9) [128]	82.2	128.99%
Lactate-BloodConcentration(mg/dL)	EqualTo 1.15*Segment3 (116) [128]	65.8	-43.39%
BloodVolume(mL)	EqualTo 5008 [128]	5.00e+03	-0.15%
TotalHemorrhagedVolume(mL)	EqualTo 1770 [128]	1.77e+03	0.00%

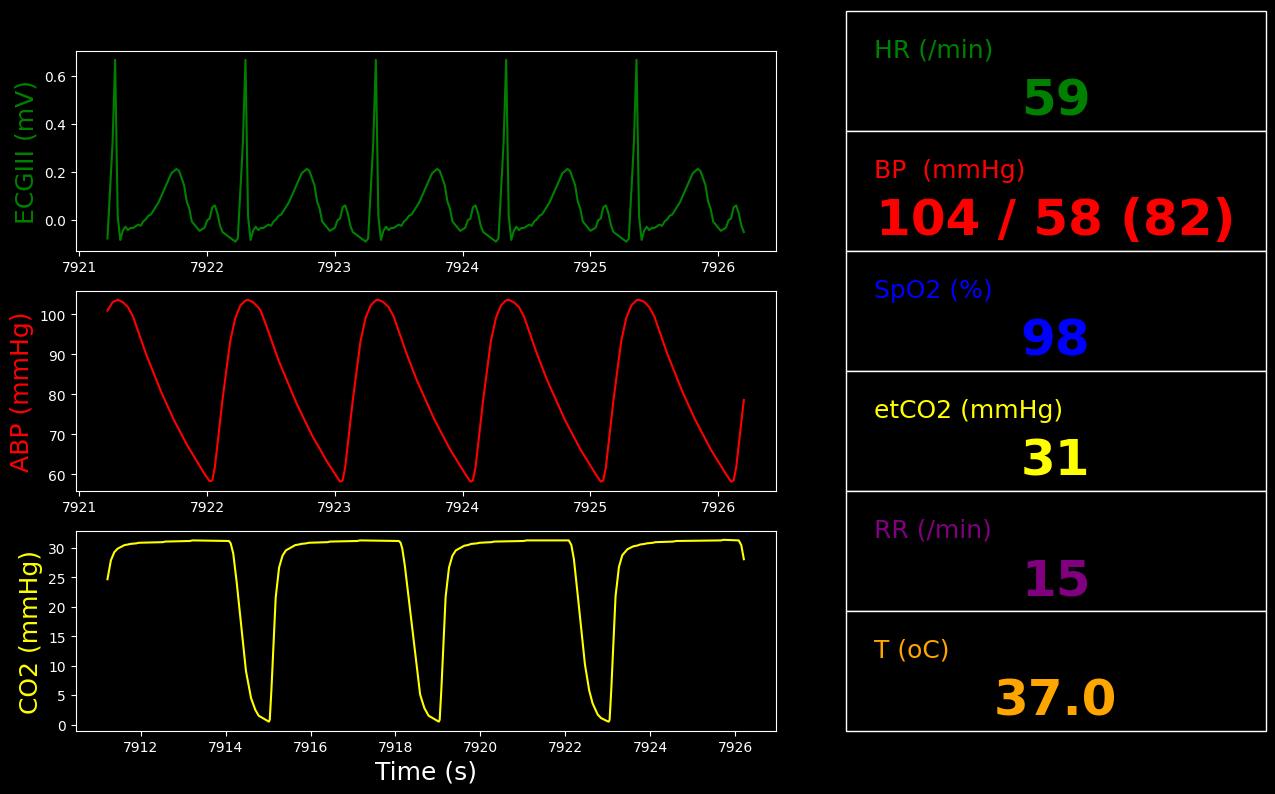

Figure 4. Vitals monitor for Segment 4.

Segment 5

Stop fluid resuscitation Initiate fluid resuscitation with blood corresponding to 14 mL/kg total for a 59 kg female pig. 59kg*14 ml/kg = 826ml -> / 60 min = 14 ml/min. Simulate for 60 minutes.

Table 5. Data request validation results for Segment 5.

Property Name	Validation	Engine Value	Percent Error
HeartRate(1/min)	EqualTo 0.92*Segment4 (54.4) [128]	58.4	7.29%
MeanArterialPressure(mmHg)	EqualTo Segment4 (82.2) [128]	83.0	0.98%
Lactate-BloodConcentration(mg/dL)	EqualTo 0.67*Segment4 (44.1) [128]	70.2	59.11%
BloodVolume(mL)	EqualTo 5008 [128]	4.99e+03	-0.43%
TotalHemorrhagedVolume(mL)	EqualTo 1770 [128]	1.77e+03	0.00%

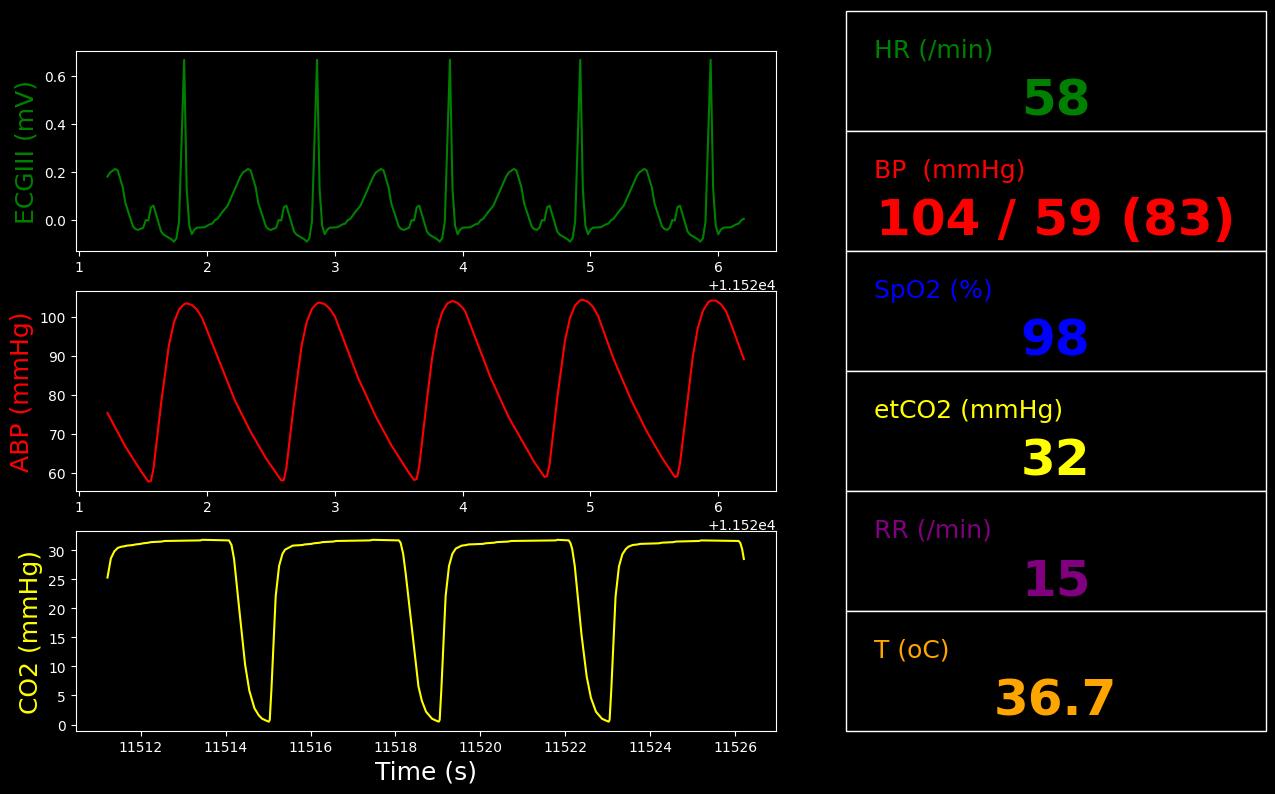

Figure 5. Vitals monitor for Segment 5.

Scenario Output Plots

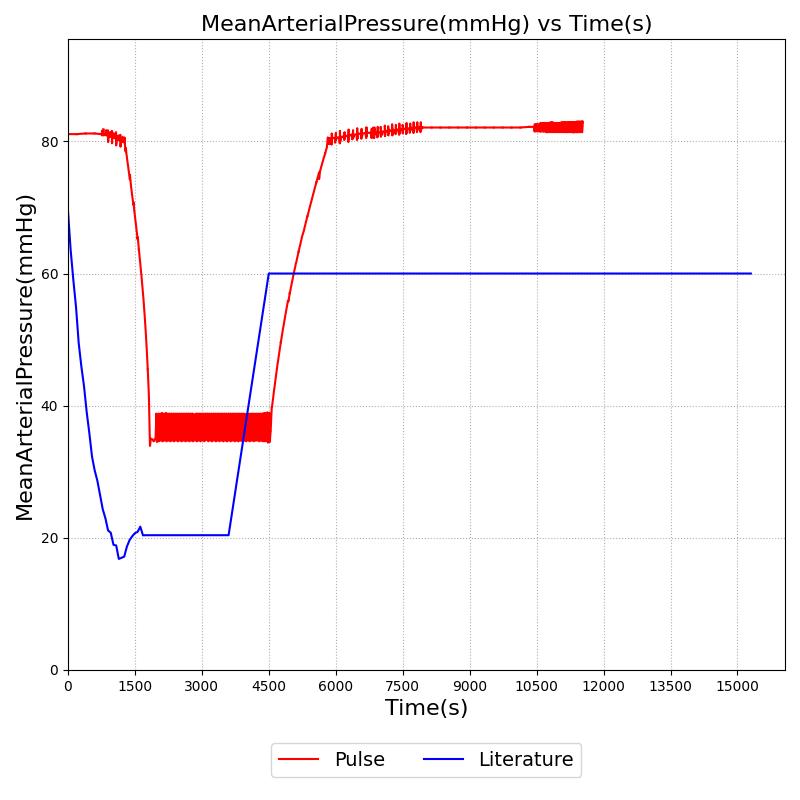

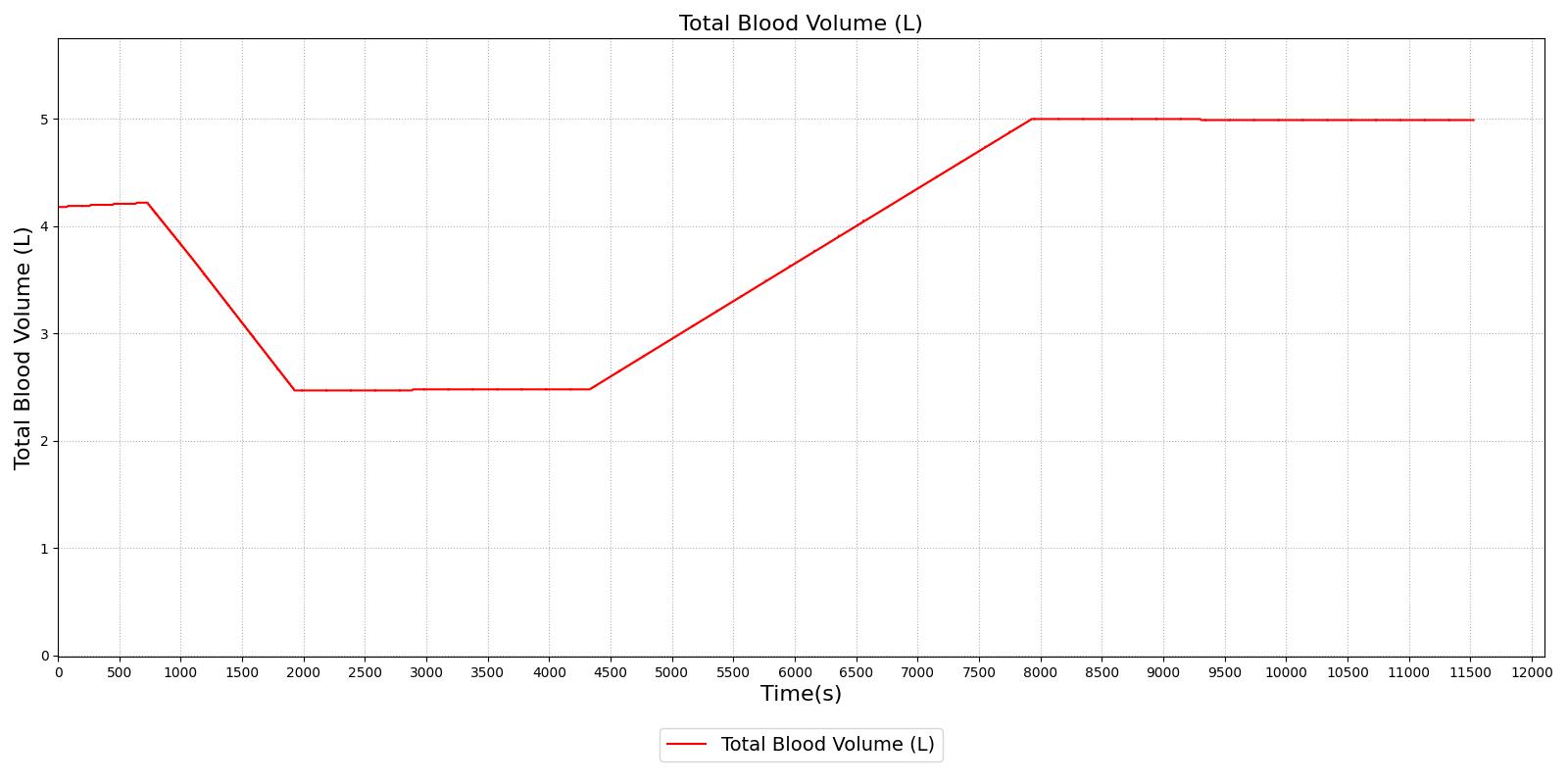

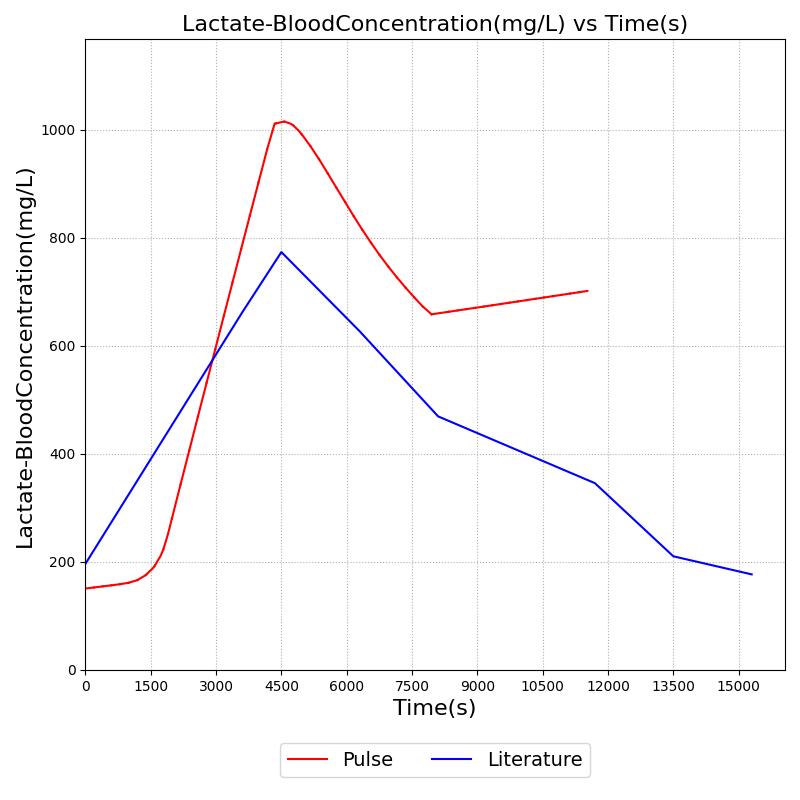

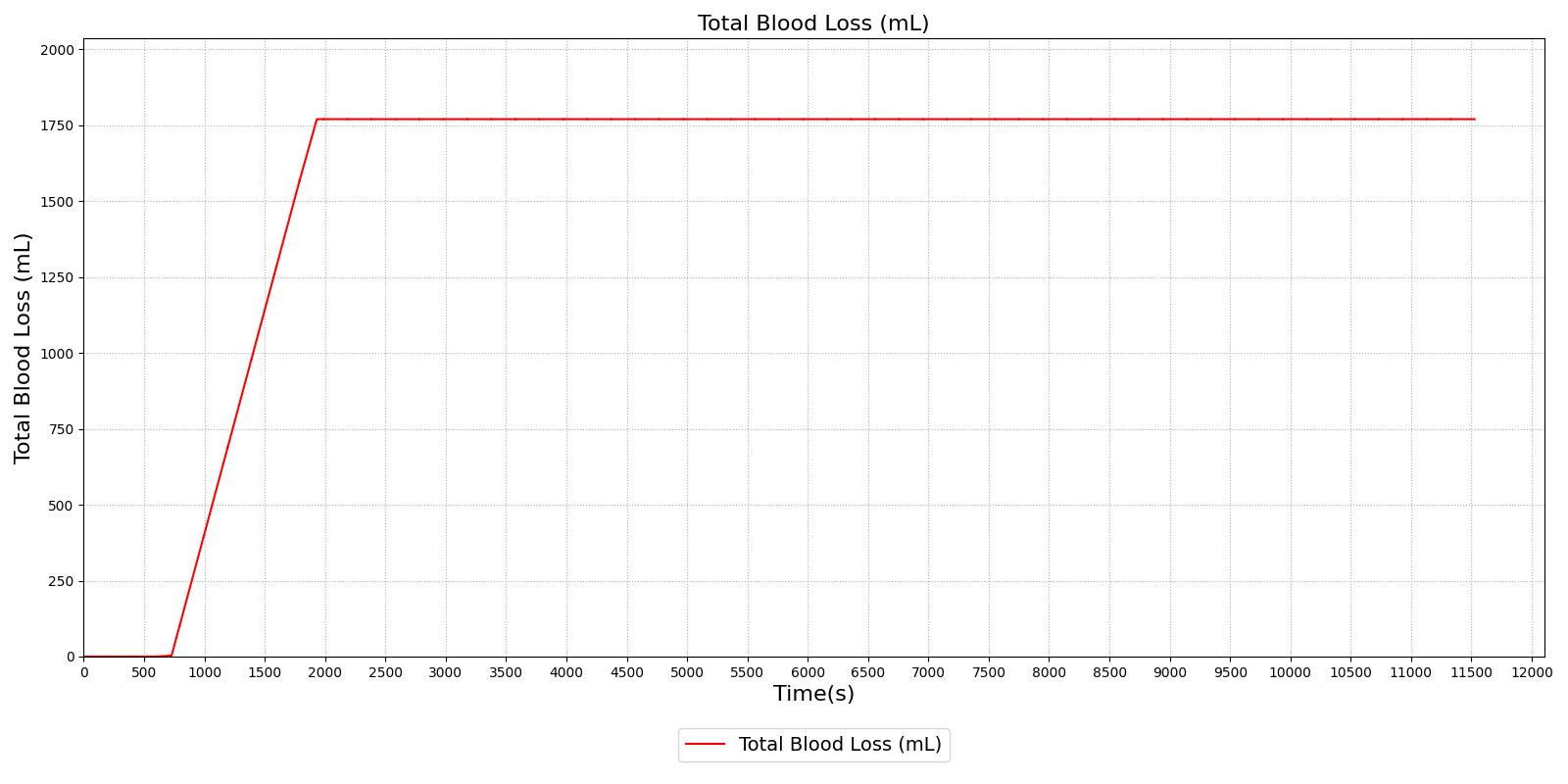

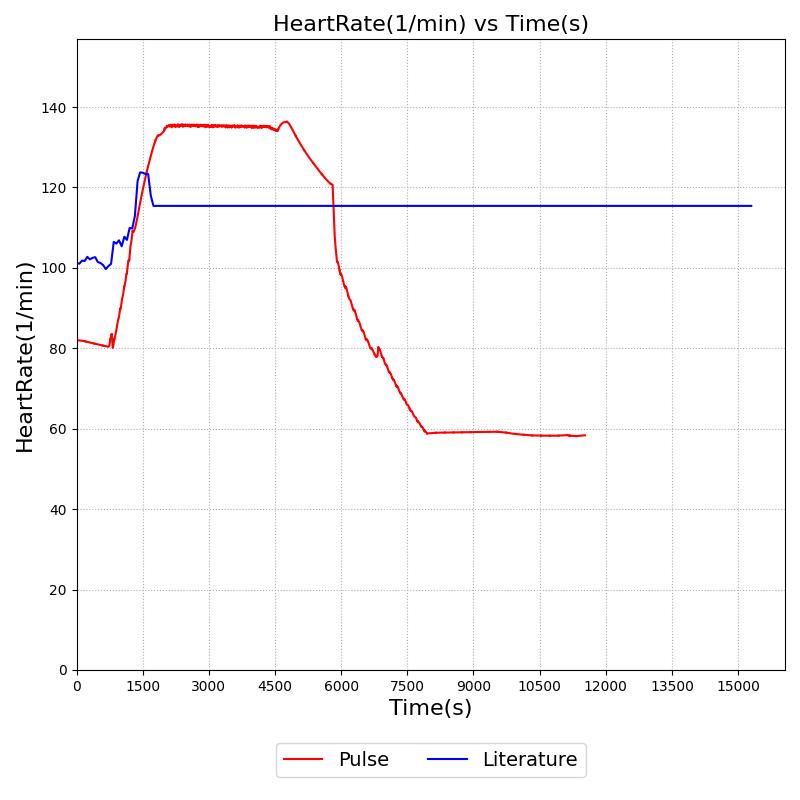

Figure 4. Select outputs from the scenario.
